Remove, Replace And Install Rear Center Seat Belt - AR91.40-P-0683MFV
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177.1
with code 287 (Through-loading feature)
| Remove/install | |||
| 1 | Remove rear seat cushion. | AR91.12-P-1021MFA | |

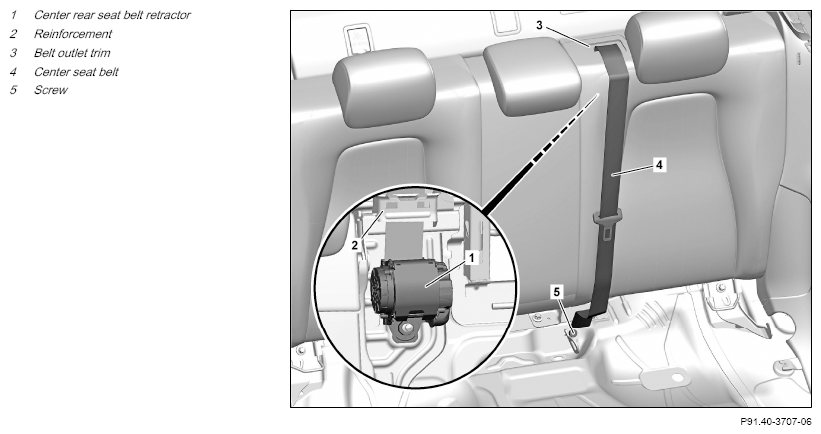

| 2 | Remove bolt (5) from seat belt end fitting of center seat belt (4). | *BA91.40-P-1006-01X | |
| 3 | Remove belt outlet trim (3) and feed out of center seat belt (4). | ||

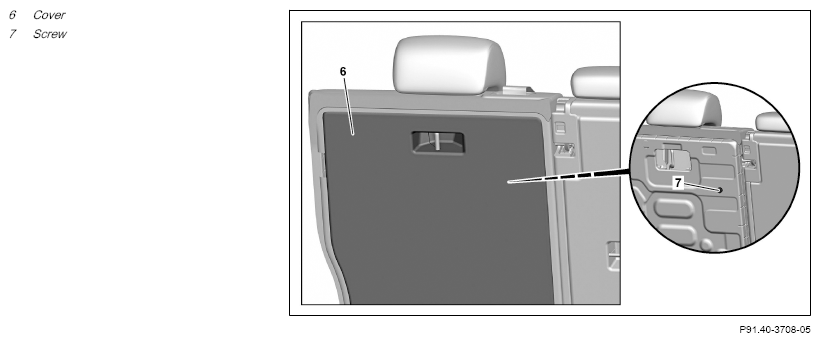

| 4 | Remove cover (6) from rear seat backrest. | ||
| 5 | Remove screw (7). | *BA91.40-P-1005-01X | |
| 6 | Remove rear seat backrest cover and padding far enough to gain access to the rear center seat belt retractor (1). | ||
| 7 | Route center seat belt (4) with seat belt tongue through reinforcement (2) on seat backrest frame. | ||
| 8 | Install in the reverse order. |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA91.40-P-1005-01X | Screw/nut, rear seat belt retractor | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA91.40-P-1006-01X | Screw/nut, seat belt end fitting/rear seat belt buckle to body | Nm | 35 | 35 |
