Seam Seal On Fender Notes - Ah97.10-P-0004-01A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 156, 166, 176, 177, 205, 213, 238, 247, 253, 292
Variant to be used for processing seam seals
When replacing or repairing a fender at the left or right, as part of repair, and if not already available as standard, a seam seal must be applied in the inner area (area A) of the fender.
Otherwise, insufficient sealing may result in corrosion.
The seam seal must have the following dimensions:
- Width: approx. 30 mm.
- Thickness: Approx. 2-3 mm.
The corresponding seam seal (A) for the vehicle is available in XENTRY
Parts Information under the category "Paints & operating fluids".

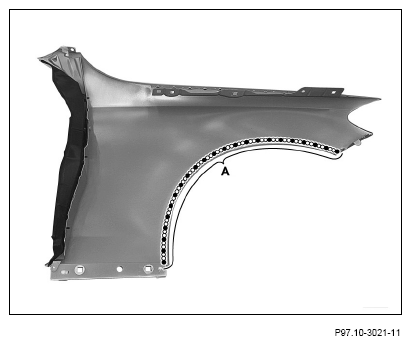

Shown on fender on model 213
