Assembly And Covering Work When Painting The Trunk Lid And The Luggage Compartment Flap - Ar98.00-P-0208NKC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 117
Model 118

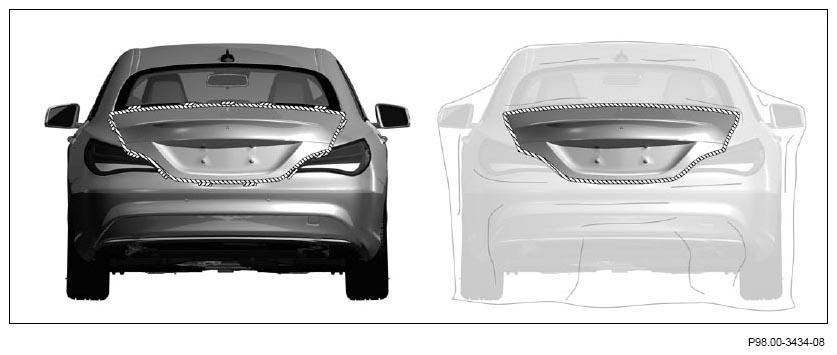

Trunk lid in paint stage 2/3 in installed condition, shown on MODEL 117.3
| Notice | Cleaning plastic cover plates of lamps | AH82.10-P-1002-01A | |
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A | ||
| Mask off and cover in paint stage 2/3 | |||
| 1 | Remove Mercedes star and retaining grommets. | ||
| 2 | Remove model badge from trunk lid. | If installed. | |
| 3 | Remove license plate. | Model 117 | |
| 4 | Remove handle strip cover from trunk lid. | Model 117.3 | AR88.50-P-5062NKC |
| 5 | Remove reversing camera. | Model 117 with code 218 (Rear view camera) | AR54.65-P-0030NKB |
| Model 118.3 with code 218 (Rear view camera) | AR54.65-P-0030MFC | ||
| 6 | Remove handle strip from trunk lid or liftgate. | Model 117 | |
| 7 | Remove license plate lamps. | Model 117 | AR82.10-P-5161NKC |
| 8 | Mask off all openings at trunk lid using masking tape. | ||
| 9 | Mask off trunk lid all the way around. | ||
| 10 | Cover areas of vehicle that are not to be painted using film. |
