Assembly And Covering Work When Painting The Engine Hood - Ar98.00-P-0204MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247
| Notice | Cleaning plastic cover plates of lamps | AH82.10-P-1002-01A | |
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A | ||
| General information on masking for paintwork | AH98.00-P-0200-01BK | ||

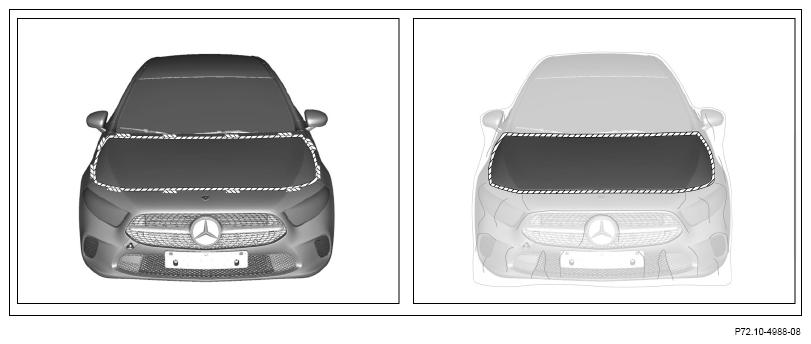

| Mask off and cover in paint stage 2/3 | |||
| 1 | Mask off all openings on engine hood with masking tape. | Under category "Guidelines for paint technology". |
|
| 2 | Mask off hood all the way around. | Under category "Guidelines for paint technology". |
|
| 3 | Cover areas of vehicle that are not to be painted using film. | Under category "Guidelines for paint technology". |
