Assembly And Covering Work When Painting The Center Roof Paneling - Ar98.00-P-0209MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
Model 177
Model 247

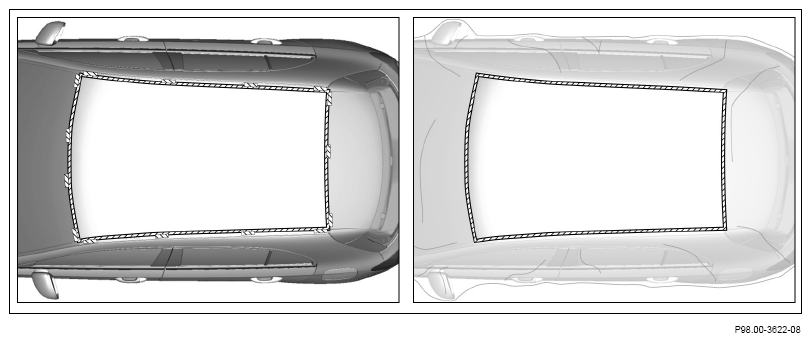

Shown on model 177.0 except code 413 (Panoramic sliding sunroof)
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A | ||
| General information on masking for paintwork | AH98.00-P-0200-01BK | ||
| Taping up, masking | |||
| 1 | Remove drip rails. | AR88.80-P-4000MFA | |
| 2 | Mask off roof paneling all round. | Under category "Guidelines for paint technology". |
|
| 3 | Cover areas of vehicle that are not to be painted using film. | Under category "Guidelines for paint technology". |
