Note On Overview Of Area Values Of Surfaces - Ah98.00-P-0004-01MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118.3

IMPORTANT

Pictures to determine material costs for accidental repair paintwork.

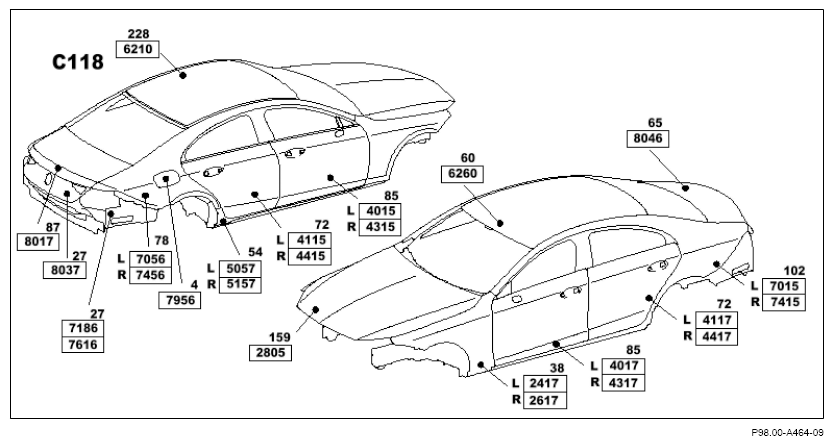

G16063153Courtesy of MERCEDES-BENZ USA

Overview of surface body components

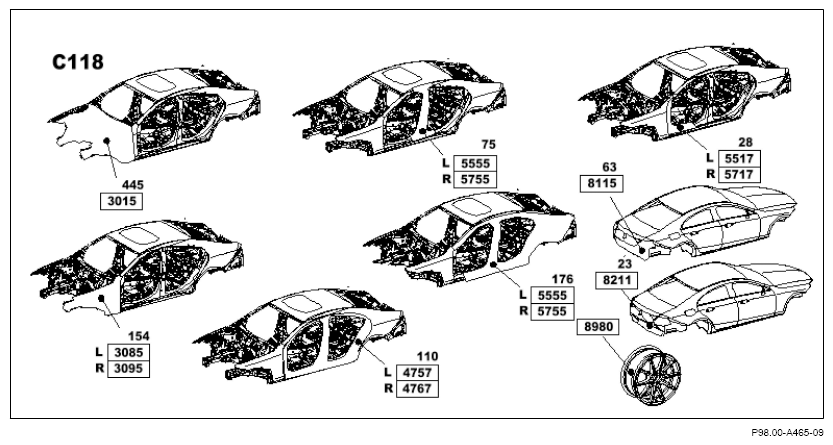

G16063154Courtesy of MERCEDES-BENZ USA

Overview of structural body components

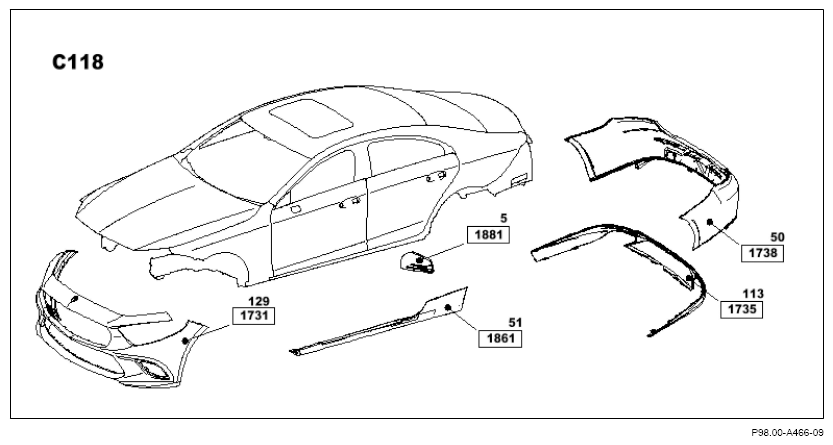

G16063155Courtesy of MERCEDES-BENZ USA

Overview of detachable components
