Applying Films And Lettering To Bumpers With Short-Range Radar Sensors Service Information - Si98.00-P-0030A

Model all (CAR)

with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))

Model all (CAR)

with code 234 (Blind Spot Assist)

Model all (CAR)

with code 237 (Active Blind Spot Assist)

Model all (CAR)

with code 238 (Active lane keeping Assist)

Model all (CAR)

with code 23U (Active Stop-and-Go Assist)

Model all (CAR)

with code 252 (COLLISION PREVENTION ASSIST)

Model all (CAR)

with code 253 (Rear impact warning and protection system)

Model all (CAR)

with code 258 (Collision warning system with active brake application FCW-Stop)

Model all (CAR)

with code 292 (PRE-SAFE® Impulse Side)

Model all (CAR)

with code 507 (Premium remote-controlled parking)

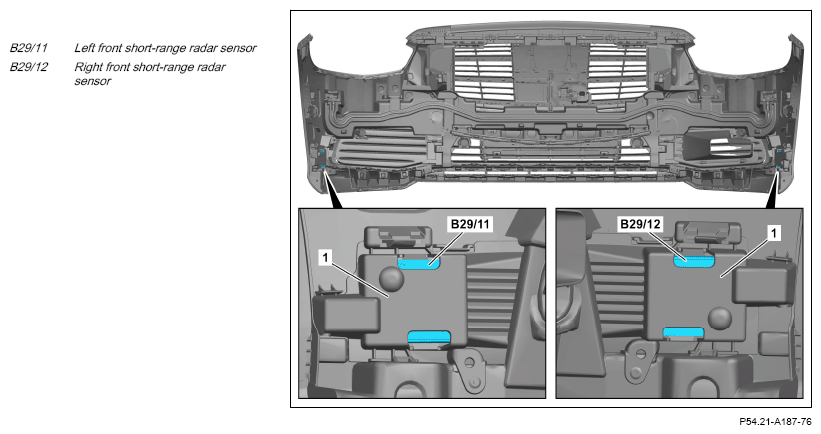

Shown on model 223 with code 233 (ART Plus (DISTRONIC PLUS))

Courtesy of MERCEDES-BENZ USA

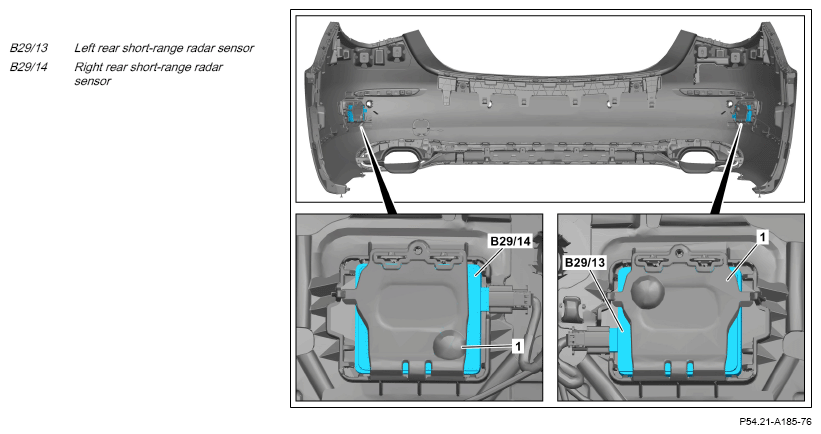

Shown on model 223 with code 233 (ART Plus (DISTRONIC PLUS))

Courtesy of MERCEDES-BENZ USA

Due to recent events, please note the following:

It is not permitted to attach films, labels, stone protection films or model badges etc. in the vicinity of the respective short-range radar sensors.

Some driving systems and driving safety systems may not work correctly if the areas around the vehicle sensors are covered!

The positioning of the respective radar sensors can be found in the corresponding repair instructions and the function descriptions of DG 54.

Model all (CAR)

with code 252 (COLLISION PREVENTION ASSIST)

Model all (CAR)

with code 258 (Collision warning system with active brake application FCW-Stop)

Radar sensors front right or front center (behind Mercedes Star)

• A90 COLLISION PREVENTION ASSIST controller unit
• A108 Active Brake Assist controller unit

Model all (CAR)

with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))

Model all (CAR)

with code 23U (Active Stop-and-Go Assist)

Model all (CAR)

with code 292 (PRE-SAFE® Impulse Side)

Model all (CAR)

with code 507 (Premium remote-controlled parking)

Outer front radar sensors (installation depending on vehicle configuration)

• B29/2 front left bumper radar sensor
• B29/3 front right bumper radar sensor
• B29/11 left front short-range radar sensor
• B29/12 right front short-range radar sensor
• B92/2 front outer left bumper radar sensor
• B92/3 front left bumper radar sensor
• B92/4 front right bumper radar sensor
• B92/5 front outer right bumper radar sensor

Model all (CAR)

with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))

Model all (CAR)

with code 234 (Blind Spot Assist)

Model all (CAR)

with code 237 (Active Blind Spot Assist)

Model all (CAR)

with code 507 (Premium remote-controlled parking)

Outer rear radar sensors

• B29/4 rear left intelligent bumper radar sensor
• B29/5 rear right intelligent bumper radar sensor
• B29/6 rear left bumper radar sensor
• B29/7 rear right bumper radar sensor
• B29/13 left rear short-range radar sensor
• B29/14 right rear short-range radar sensor
• B92/6 rear outer right integrated bumper radar sensor
• B92/7 rear outer right bumper radar sensor
• B92/10 rear outer left bumper radar sensor
• B92/11 rear outer left integrated bumper radar sensor

Model all (CAR)

with code 238 (Active lane keeping Assist)

Model all (CAR)

with code 253 (Rear impact warning and protection system)

Rear center radar sensors

• B29/10 rear center bumper radar sensor
• B92/1 rear center bumper radar sensor
