Remove/Install Removal And Installation Tool For Parking Lock Mechanism - AR27.60-P-0950-01NKB
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.0 in model 117
Transmission 724.0 in model 118, 177, 247
Transmission 724.0 in model 156
Transmission 724.0 in model 176
Transmission 724.0 in model 242
Transmission 724.0 in model 246
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A |
The following special tool is required:
Removal and installation tool (724 589 00 59 00).

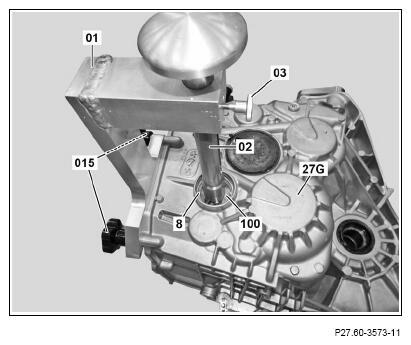

Assembly and handling of removal and installation tool (01)
- If required, move removal and installation tool (01) to basic position.

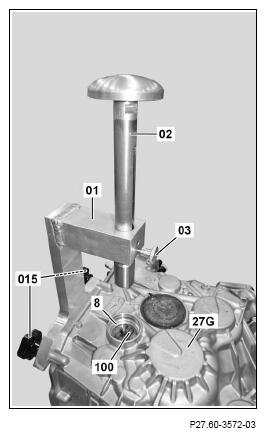

Release clamping bolt (03), pull push rod (02) upwards and tighten clamping bolt (03).
- Attach removal and installation tool (01) to transmission housing (27G).
Fasten removal and installation tool (01) to transmission housing (27G) with handbolts (015).
- Remove retaining screw (03), push the push rod (02) downwards onto actuator for park pawl (100) and fasten push rod (02) in this position using retaining screw (03).
Make sure that the front part of the push rod (02) is positioned correctly on the park pawl actuator (100).
- After removal of the retaining ring and the locking pin, remove the retaining screw (03) and slowly move the actuator for park pawl (100) upwards.
The park pawl actuator (100) is spring-loaded and must therefore be released slowly.
- Installation of the park pawl actuator (100) and disassembly of the removal and installation tool (01) are performed in the reverse order.
