Remove/Install Power Take-Off On Clutch Housing - AR27.45-P-0010-01MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.0/1 in model 118, 177, 247
with code M005 (Vehicles with 4MATIC/all-wheel drive)
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 724.0 | |||
|---|---|---|---|---|---|
| BA27.10-P-1018-04F | Screw/bolt, power takeoff to coupling housing | M8 | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 45 | |||
ELECTROHYDRAULIC CONTROLLER UNIT
| Number | Designation | Transmission 724.1 | ||
|---|---|---|---|---|
| BA27.19-P-1006-01E | Bolt, transmission housing to power take-off | M8 | Nm | 29 |
ELECTROHYDRAULIC CONTROLLER UNIT
| Number | Designation | Transmission 724.1 | ||
|---|---|---|---|---|
| BA27.19-P-1007-01E | Screw/bolt, power take-off to coupling housing | M8 | Nm | 29 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
- Clean area surrounding power take-off (1) on coupling housing (27K).

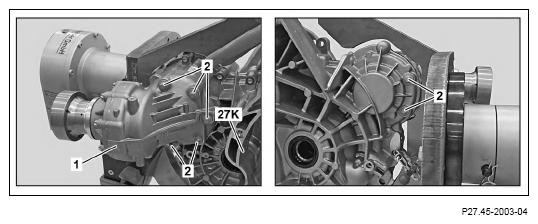

- Remove screw/bolts (2) Transmission 724.0 in model 118, 177, 247 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 724.1 in model 118, 177, 247 with code M005 (Vehicles with 4MATIC/all-wheel drive)

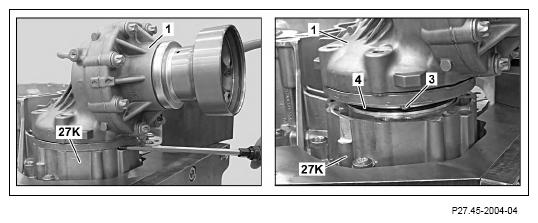

- Pry off and remove power take-off (1) from coupling housing (27K).
Do not tilt power take-off (1). Otherwise damage may occur.
: The dowel pin (3) defines the installation position.
- Remove O-ring (4).
- Install in the reverse order.
