Remove/Install Permanent Magnet Of Park Pawl - AR27.60-P-0957MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.0 in model 118, 177, 247
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove park pawl lift solenoid (L21). | AR27.19-P-0012MFC | |

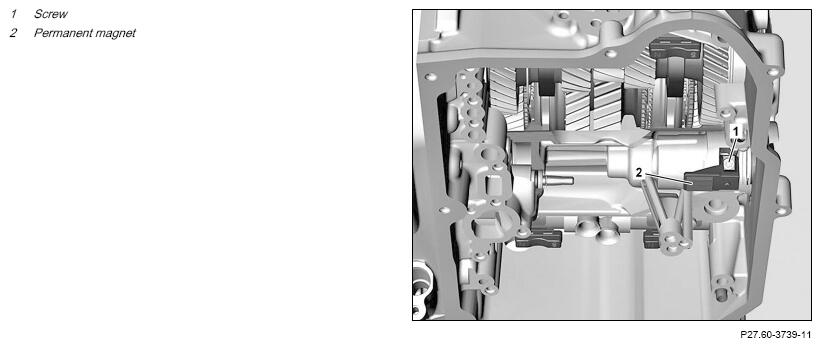

| 2 | Remove bolt (1) and remove permanent magnet (2). | Do not expose the permanent magnet (2) to any magnetic fields. Otherwise the permanent magnet (2) will be damaged. Otherwise, the transmission may malfunction. |
*BA27.10-P-1010-04F |
| 3 | Install in the reverse order. |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 724.0 | |
|---|---|---|---|
| BA27.10-P-1010-04F | Bolt, permanent magnet to reset piston | Nm | 5 |
