Remove/Install Park Pawl Actuator - AR27.60-P-0951MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.1 in model 118, 177, 247
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove electrohydraulic controller unit. | AR27.19-P-0200MFA | |

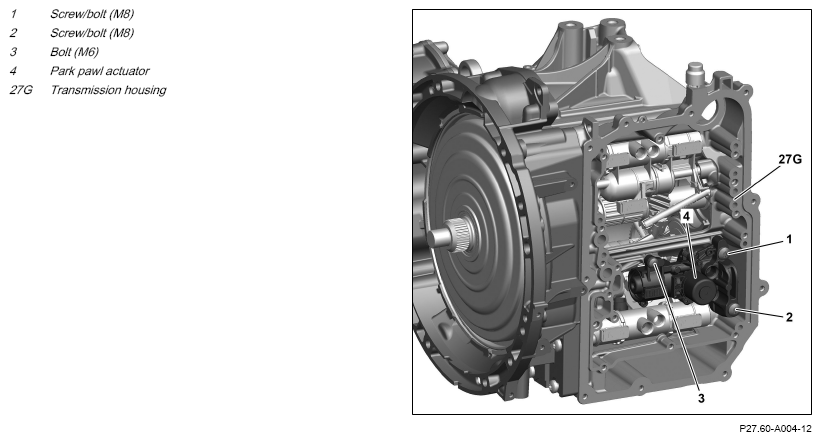

| 2 | Remove screws (1, 2, 3) and remove park pawl actuator (4) from transmission housing (27G). | ||
| Topical note | Notes on threaded connections fastened using a tightening angle-based tightening process | Replace screws (1, 2, 3). |
AH00.00-P-0020-01A |
| *BA27.10-P-1009-06C | |||
| 3 | Install in the reverse order. |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 724.1 | |||
|---|---|---|---|---|---|
| BA27.10-P-1009-06C | Bolt, park pawl actuator to transmission housing | M6 | Stage 1 | Nm | 6 |
| Stage 2 | ∠° | 90 | |||
| M8 | Stage 1 | Nm | 12 | ||
| Stage 2 | ∠° | 90 | |||
