Remove/Install Gearshift Paddles On Steering Wheel - AR27.60-P-0200FRB
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 247
as of model year 2023
with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT))
except code L3A (multifunction sports steering wheel)
except code L3E (Sport steering wheel - smooth split leather)
except code L5C (Supersport steering wheel-leather deep-embossed)
Model 177
as of model year 2022
with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT))
except code L3A (multifunction sports steering wheel)
except code L3E (Sport steering wheel - smooth split leather)
except code L5C (Supersport steering wheel-leather deep-embossed)
Model 290
as of model year 2021
with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT))
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove instrument cluster multifunction steering wheel button group (S163/1) and head unit multifunction steering wheel button group (S163/2). | AR82.90-P-0014FRB | |
| 2 | Expose electric lines of steering wheel downshift button (S110/1) or steering wheel upshift button (S111/1). | ||

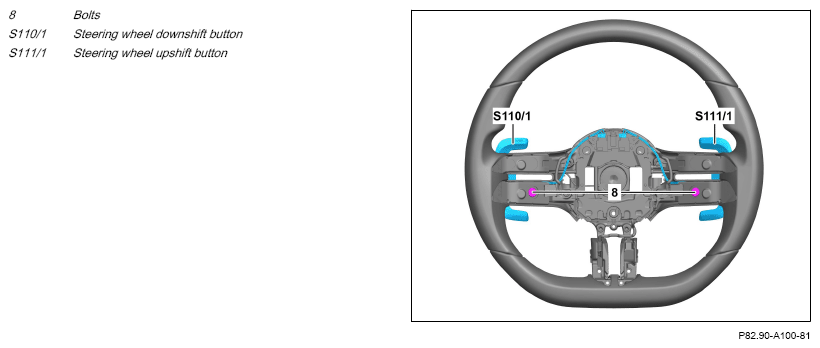

| 3 | Remove bolts (8). | Model 177 as of model year 2022 with code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) except code L3A (multifunction sports steering wheel) except code L3E (Sport steering wheel - smooth split leather) except code L5C (Supersport steering wheel-leather deep-embossed) Screw, steering wheel shift lever knob to steering wheel |
*BA46.10-P-1004-02F |
Screw, steering wheel shift lever knob to steering wheel |
*BA46.10-P-1006-02J | ||
| 4 | Remove the steering wheel downshift button (S110/1) and steering wheel upshift button (S111/1). | This will result in damage to the electric lines and can impair their function. |
|
| 5 | Install in the reverse order. |
STEERING WHEEL
| Number | Designation | Model 117, 118 | Model 177 | |
|---|---|---|---|---|
| BA46.10-P-1004-02F | Screw, steering wheel shift lever knob to steering wheel | Nm | 2 | 2 |
STEERING WHEEL
| Number | Designation | Model 247 | |
|---|---|---|---|
| BA46.10-P-1004-02F | Screw, steering wheel shift lever knob to steering wheel | Nm | 2 |
STEERING WHEEL
| Number | Designation | Model 290 | |
|---|---|---|---|
| BA46.10-P-1006-02J | Screw, steering wheel shift lever knob to steering wheel | Nm | 2 |
