Remove/Install Auxiliary Oil Pump Of Dual-Clutch Transmission - AR27.57-P-0653MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.1 in model 118, 177, 247
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||

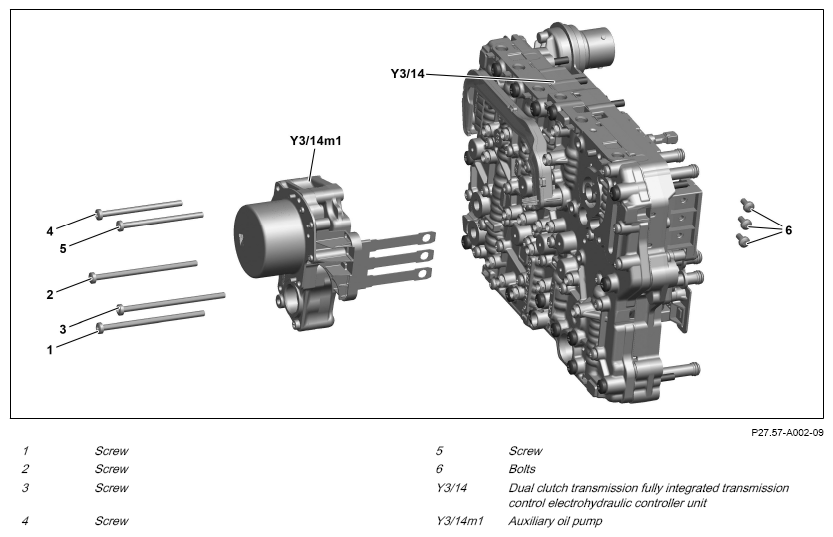

| 1 | Remove dual clutch transmission fully integrated transmission control electrohydraulic controller unit (Y3/14). | AR27.19-P-0200MFA | |
| 2 | Remove screws (4, 5). | *BA27.19-P-1001-01E | |
| 3 | Remove screws (1, 2, 3). | *BA27.19-P-1001-01E | |
| 4 | Remove bolts (6). | *BA27.19-P-1001-01E | |
| 5 | Remove auxiliary oil pump (Y3/14m1) from dual-clutch transmission fully integrated transmission control electrohydraulic controller unit (Y3/14). | ||
| 6 | Install in the reverse order. |
ELECTROHYDRAULIC CONTROLLER UNIT
| Number | Designation | Transmission 724.1 | ||||
|---|---|---|---|---|---|---|
| BA27.19-P-1001-01E | Bolt, electrical tandem pump | to valve housing | M5x95 | Stage 1 | Nm | 3 |
| Stage 2 | ∠° | 60 | ||||
| to oil distributor plate | M5x75 | Stage 1 | Nm | 3 | ||
| Stage 2 | ∠° | 60 | ||||
| to GC control unit | Nm | 5 | ||||
