Retrofit Trailer Hitch Wiring Harness - AN31.19-P-8100-05MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118.3

Topical note  Notes on the use of paint scraping nuts on ground connections   AH00.19-P-1000-20A
Topical note  Notes on retrofitting electrical/optical lines   AH82.00-P-0000-01A
Topical note  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
GROUND POINTS

Number Designation Model 118
BA00.19-P-1009-02E Right wheelhouse trunk ground point W7 M6 Nm 10
Fig 1: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)
G16047408Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)
G16065030Courtesy of MERCEDES-BENZ USA

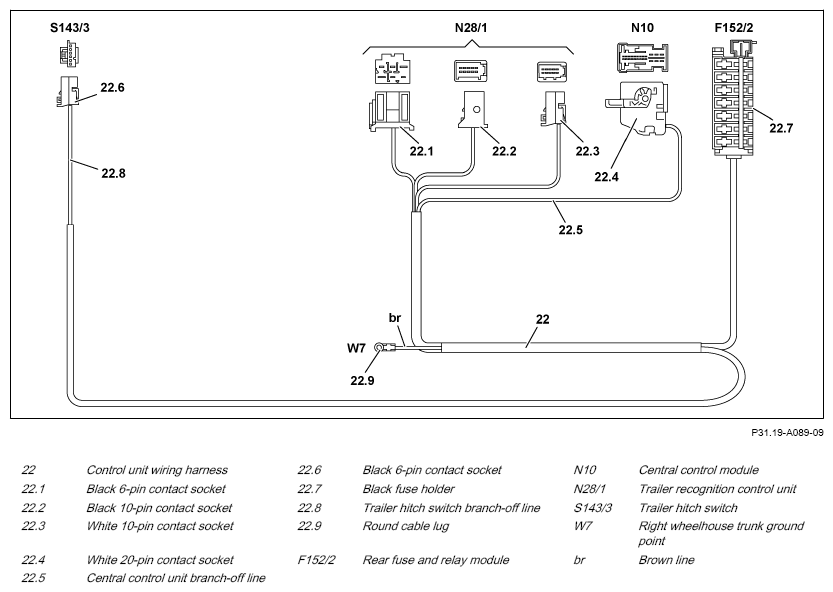

G16063184Courtesy of MERCEDES-BENZ USA

Connection scheme

Routing diagram shown on left-hand drive vehicle

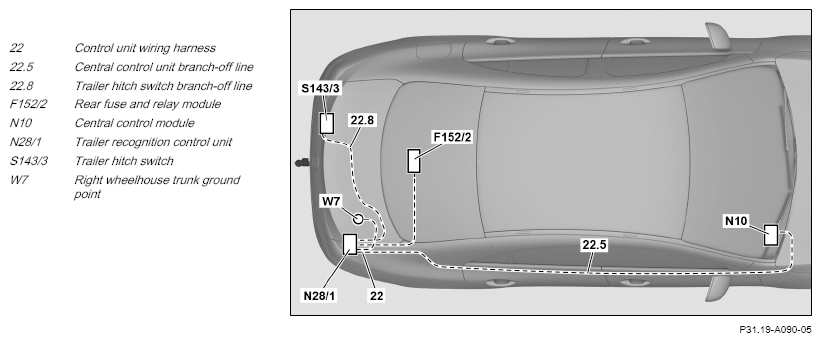

G16063185Courtesy of MERCEDES-BENZ USA

IMPORTANT

The routing of the control unit wiring harness (22) is shown on a left-hand drive vehicle. The control unit wiring harness (22) on right-hand drive vehicles is routed on the right side of the vehicle toward the front and from there under the removed instrument panel to the central control unit (N10).

  1. Remove all fasteners on control unit wiring harness (22).

    IMPORTANT

    The fasteners are no longer required.

  2. Route brown line (BN) to right wheel arch trunk ground point (W7).
  3. Bend shackles (arrows) at round cable lug (22.9) and remove nut.
  4. Turn round cable lug (22.9) and connect to right wheel arch trunk ground point (W7). TORQUE SPECIFICATION

    IMPORTANT

    The side of the round cable lug (22.9) on which the nut was fastened must face downwards.

    A maximum of 4 round cable lugs may be connected per ground point. If already occupied, select another ground point that has not been used.

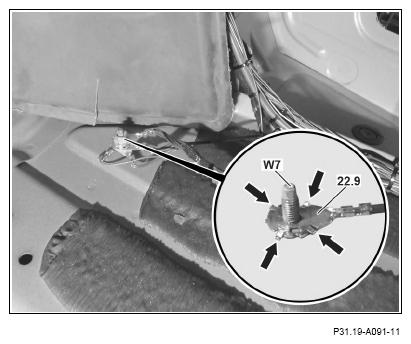

    G14687966Courtesy of MERCEDES-BENZ USA
  5. Attach black 6-pin contact socket (22.1) of control unit wiring harness (22) to trailer recognition control unit (N28/1).
  6. Attach black 10-pin contact socket (22.2) of control unit wiring harness (22) to trailer recognition control unit (N28/1).
  7. Attach white 10-pin contact socket (22.3) of control unit wiring harness (22) to trailer recognition control unit (N28/1).

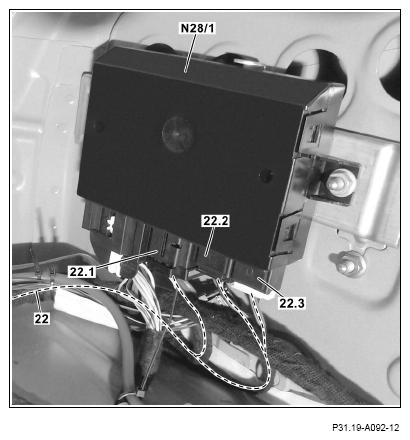

    G14687967Courtesy of MERCEDES-BENZ USA
  8. Route trailer hitch switch branch-off line (22.8) of control unit wiring harness (22) on right trunk lid hinge to installation location of trailer hitch switch (S143/3).

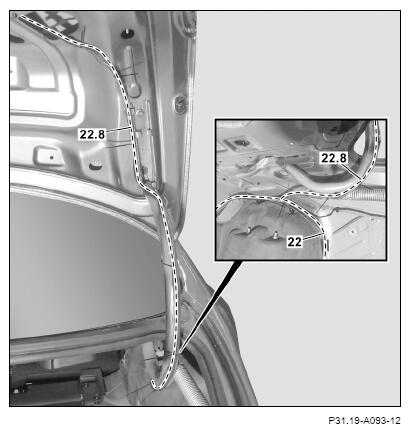

    G16063188Courtesy of MERCEDES-BENZ USA
  9. Fix trailer hitch switch branch-off line (22.8) in place with cable ties.

    IMPORTANT

    The black 6-pin contact socket (22.6) is connected to the trailer hitch switch (S143/3) at a later stage.

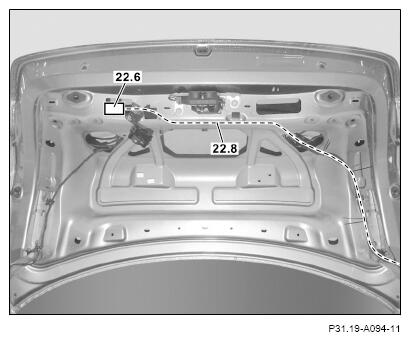

    G16063189Courtesy of MERCEDES-BENZ USA
  10. Remove black 20-pin contact socket insert from white 20-pin contact socket (22.4).
  11. Remove electric lines of black 20-pin contact socket insert and note down contact cavity assignment.

    IMPORTANT

    Contact cavity assignment:

    Contact cavity 1 = Black/white line

    Contact cavity 7 = Brown line

    Contact cavity 11 = Pink/red line

    Contact cavity 17 = Brown/red line

    IMPORTANT

    Take appropriate tool from the SPECIAL TOOL basic wiring harness repair kit or the SPECIAL TOOL supplementary passenger car wiring harness repair kit.

  12. Route central control unit branch-off line (22.5) of control unit wiring harness (22) into footwell in rear passenger compartment on front passenger side.

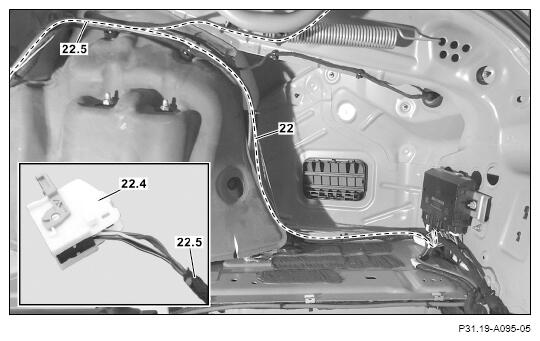

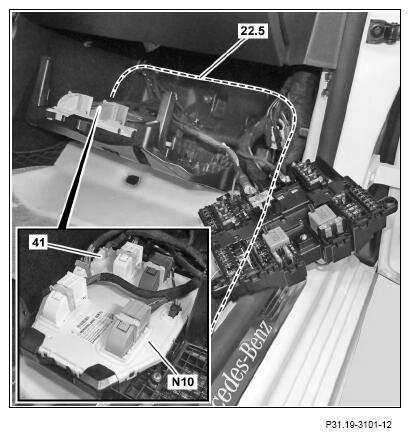

    G16063190Courtesy of MERCEDES-BENZ USA

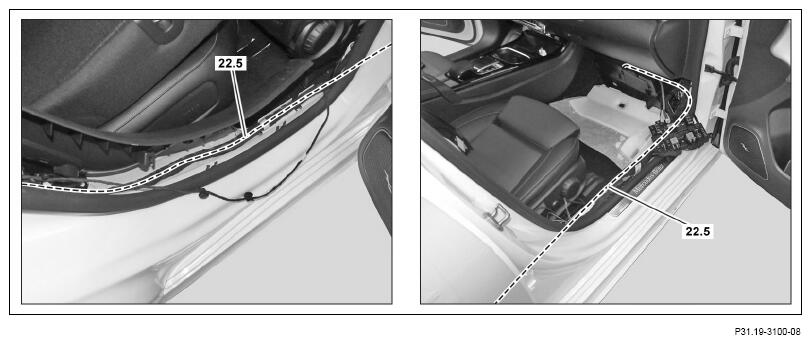

    G15488887Courtesy of MERCEDES-BENZ USA
  13. Route central control unit branch-off line (22.5) into front passenger footwell.
  14. Route central control unit branch-off line (22.5) to central control unit (N10) and fix in place with cable ties along its entire length.
  15. Remove white 20-pin contact socket (41) from central control unit (N10).

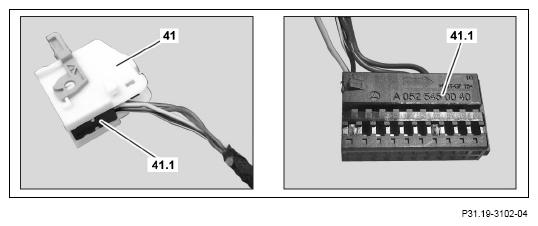

    G15488888Courtesy of MERCEDES-BENZ USA
  16. Remove black 20-pin contact socket insert (41.1) from white 20-pin contact socket (41).
  17. Install electric lines of central control unit branch-off line (22.5) into black 20-pin contact socket insert (41.1) as noted previously.

    IMPORTANT

    Contact cavity assignment:

    Contact cavity 1 = Black/white line

    Contact cavity 7 = Brown line

    Contact cavity 11 = Pink/red line

    Contact cavity 17 = Brown/red line

  18. Install black 20-pin contact socket insert (41.1) into white 20-pin contact socket (41).
  19. Attach white 20-pin contact socket (41) to central control unit (N10).
    G14687973Courtesy of MERCEDES-BENZ USA
  20. Route red/green line (RD/GN) and black fuse holder (22.7) with lines to installation location of rear fuse and relay module (F152/2) and fix in place using cable ties.

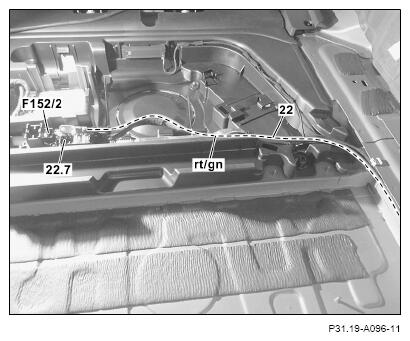

    G16063194Courtesy of MERCEDES-BENZ USA
  21. Install red/green line (RD/GN) and black fuse holder (22.7) into rear fuse and relay module (F152/2).

    IMPORTANT

    Remove black fuse holder (22.8) from parts kit.

  22. Clip rear fuse and relay module (F152/2) into cutout.
  23. Fix control unit wiring harness (22) in place with cable ties.

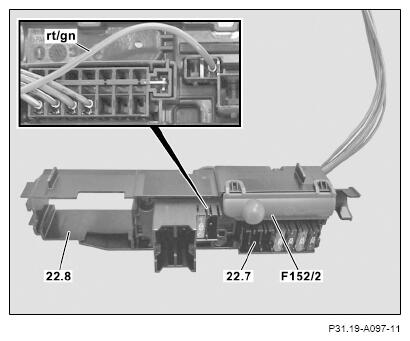

G16063195Courtesy of MERCEDES-BENZ USA
