Retrofit Trailer Coupling Control Unit - AN31.19-P-8080-05MFV
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
Model 177.1
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |

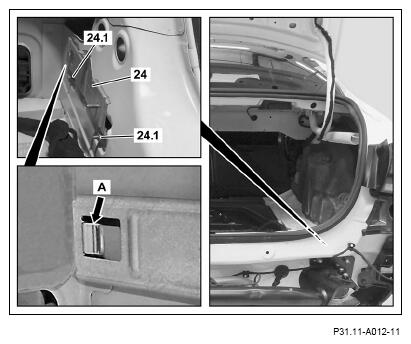

- Position holder (24) on rear-end center section and tighten with nuts (24.1).

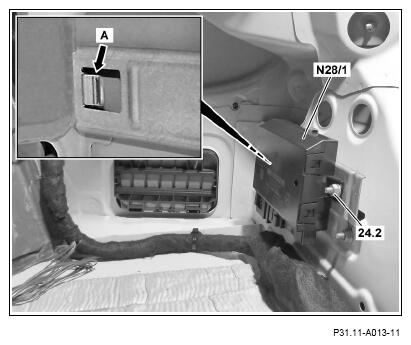

- Insert trailer recognition control unit (N28/1) into shackle (A) of holder (24), position on holder (24) and tighten with nut (24.2).
