Retrofit Mechanical Detachable Parts - AN31.11-P-8080-05MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on installing a trailer hitch | AH31.10-P-1000-02CW | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
TRAILER COUPLING MECHANISM
| Number | Designation | Model 118, 177, 206, 243, 247 | |
|---|---|---|---|
| BA31.11-P-1001-01K | Bolt/nut, trailer hitch to longitudinal member reinforcement | Nm | 140 |
TRAILER COUPLING MECHANISM
| Number | Designation | Model 118, 177, 206, 243, 247 | |
|---|---|---|---|
| BA31.11-P-1002-01K | Nut, longitudinal member reinforcement for trailer hitch to body | Nm | 55 |
TRAILER COUPLING MECHANISM
| Number | Designation | Model 118, 177, 206, 243, 247 | |
|---|---|---|---|
| BA31.11-P-1003-01K | Screw/bolt, longitudinal member reinforcement for trailer hitch to body | Nm | 140 |

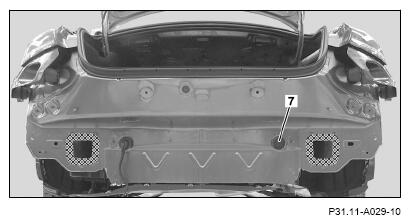

- Remove stop plug (7).
The stop plug (7) is no longer required.
- Remove adhesive residue from seals in cross-hatched areas.

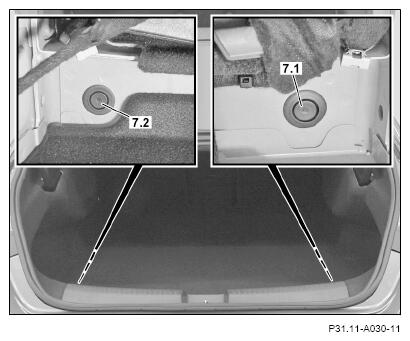

- Remove stop plugs (7.1, 7.2).
The stop plugs (7.1, 7.2) are no longer required.

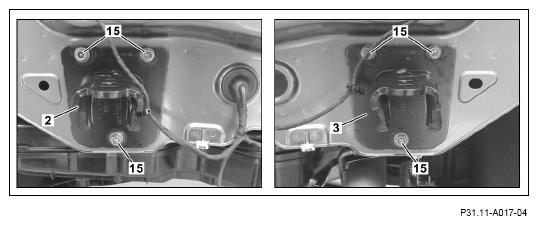

- Insert longitudinal member reinforcement (3) into right longitudinal frame member.
- Insert longitudinal member reinforcement (2) into left longitudinal frame member.
- Tighten nuts (15) slightly by hand.

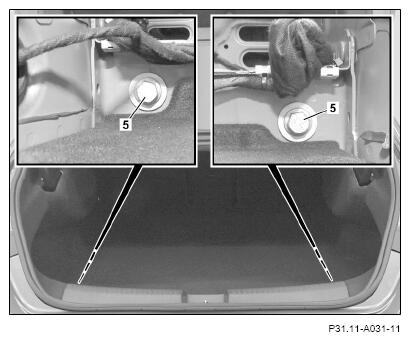

- Tighten screws (5) lightly by hand.

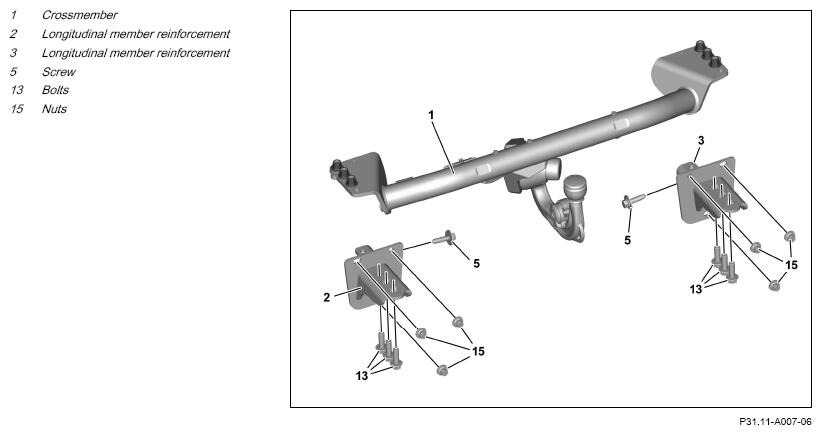

- Position crossmember (1) on longitudinal member reinforcements (2, 3) and screw in bolts (13) finger-tight.
Helper required.
- Align crossmember (1) and longitudinal member reinforcements (2, 3).
The tightening sequence described below must be strictly observed.

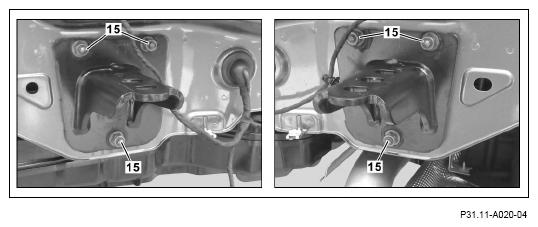

- Tighten nuts (15) to specified torque.
- Tighten screws (5) to torque.
- Tighten screws/bolts (13) to specified torque.
- Attach black 8-pin plug (6.1) and black 4-pin plug (6.3) to crossmember (1).
