Remove Contacts From Sensor Laminated Contact Coupling - AR00.19-P-0120-02A

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model All Sensor-plate contact coupling Design 97

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying SLK 2.8 - 97 Blade (220 589 01 99 63)

Courtesy of MERCEDES-BENZ USA

Unpin female contacts from coupling

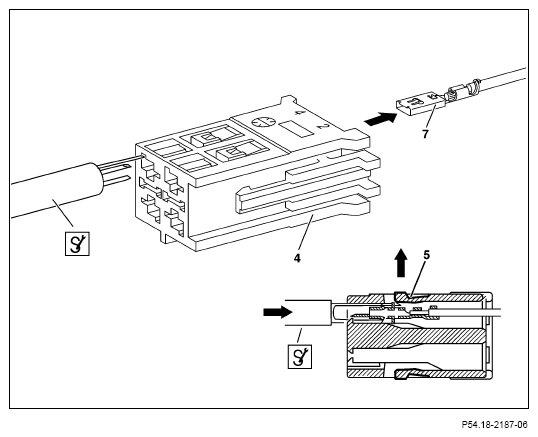

Insert blade holder with clamping pliers and SLK 2.8 - 97 blade from front side into contact cavity of coupling (4).
Both spring shackles on the female contact (7) are compressed and, simultaneously, the locking tab (5) on the coupling (4) is lifted.

Courtesy of MERCEDES-BENZ USA
A slight tug on the corresponding cable will remove the female contact (7) from the coupling.
Rocking the female contact back and forth making use of the full housing tolerance may help to unpin the contact.
