Remove/Install Knock Sensors - AR15.12-P-2184MFG

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 139 in model 118, 177, 247

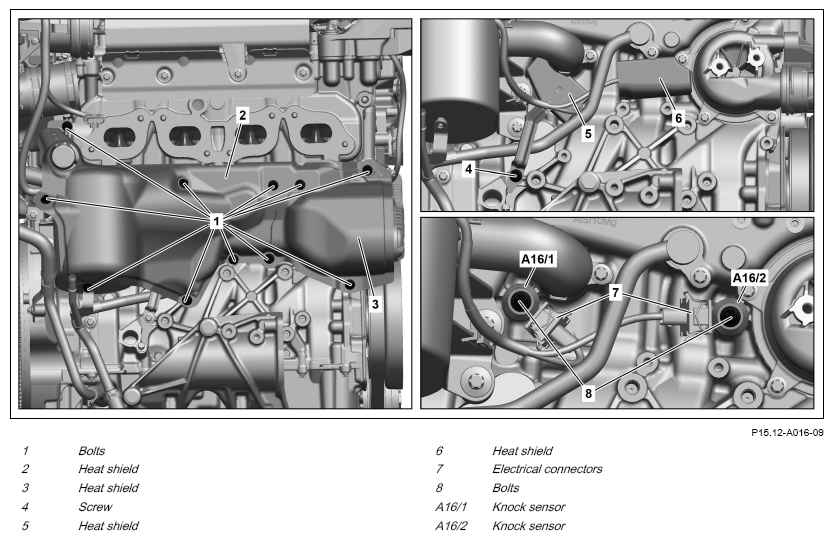

Fig 1: Knock Sensors Components Location - Model 118 With Engine 139
G16048544Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
Topical note  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Topical note  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVINGINSTALLING Remove/install
1 Remove the catalytic converter.   AR49.20-P-0100MFG
2 Remove screw/bolts (1) and remove heat shields (2, 3). TORQUE SPECIFICATION Screw/bolt, heat shield of knock sensor to crankcase/engine support/bracket *BA15.10-P-1002-02B
3 Unscrew bolt (4). TORQUE SPECIFICATION Screw/bolt, heat shield of knock sensor to crankcase/engine support/bracket *BA15.10-P-1002-02B
4 Unclip heat shields (5, 6) and remove.
5 Mark position of knock sensor 1 (A16/1) and knock sensor 2 (A16/2) on crankcase.
6 Release and disconnect electrical connector (7) at knock sensor 1 (A16/1) and/or knock sensor 2 (A16/2).
7 Remove bolt (8) from knock sensor 1 (A16/1) and/or knock sensor 2 (A16/2). TORQUE SPECIFICATION Bolt, knock sensor to crankcase *BA15.10-P-1001-02B
8 Remove knock sensor 1 (A16/1) and/or knock sensor 2 (A16/2). INSTALLATION IMPORTANT If re-using knock sensor 1 (A16/1) and knock sensor 2 (A16/2), place them in the previously marked position.
When replacing knock sensor 1 (A16/1) and knock sensor 2 (A16/2),
↓
Transfer marking of installation position from old part.
9 Install in the reverse order.
INSPECT Check
10 Connect vehicle diagnosis system, read out fault memory, and delete.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06MFA
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
11 Perform an engine test run; check the engine for proper function.
KNOCK SENSORS

Number Designation Engine 139
BA15.10-P-1001-02B Bolt, knock sensor to crankcase Nm 20
KNOCK SENSORS

Number Designation Engine 139
BA15.10-P-1002-02B Screw/bolt, heat shield of knock sensor to crankcase/engine support/bracket Nm 8
