Remove/Install Circulation Pump For Low Temperature Circuit - AR09.41-P-6926MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247 with code M016 (Uprated engine)

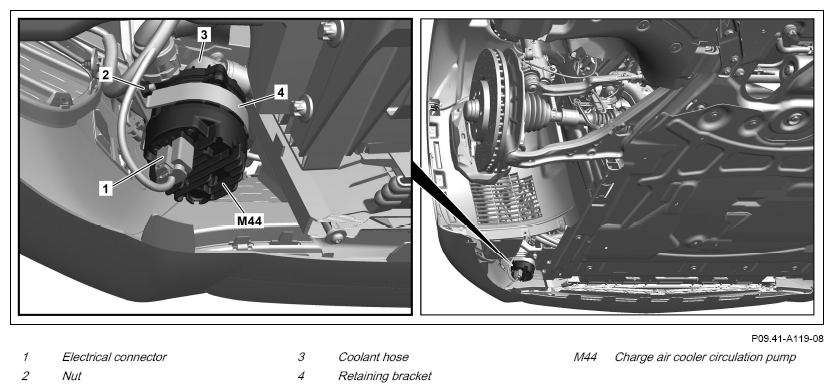

Fig 1: Circulation Pump For Low Temperature Circuit Components Location - Model 118 In Engine 260 With Code M016
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Drain off Low Temperature circuit coolant. | AR09.41-P-6834MFC | |
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Remove the coolant hose (3) from the charge air cooler circulation pump (M44) and seal the openings with protective covers. | AR09.41-P-1311-01AL | |
| Fig 2 | |||
| 4 | Remove the nuts (2) and open the retaining bracket (4). | *BA20.10-P-1011-01AC | |
| 5 | Remove charge air cooler circulation pump (M44). | ||
| 6 | Install in the reverse order. | ||
| 7 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06MFA |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 260 | |
|---|---|---|---|
| BA20.10-P-1011-01AC | Screw/nut, charge air cooler circulation pump retaining bracket/circulation pump to holder | Nm | 8 |
