Tightening Procedure For Exhaust Gas Turbocharger - GF09.40-P-8451-10MFH

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 260 in model 118 as of model year 2023

Engine 260 in model 177, 247 as of model year 2022

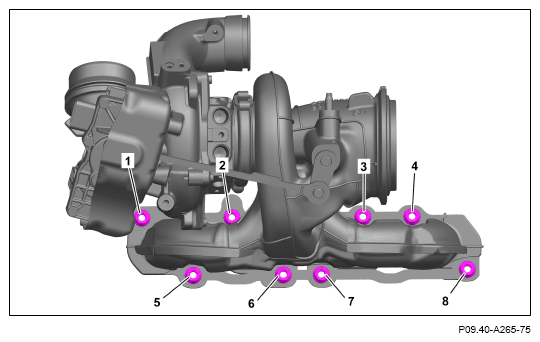

IMPORTANT Nuts (1 to 8) of exhaust gas turbocharger are tightened in numerical order according to the specifications.

G16048331Courtesy of MERCEDES-BENZ USA
