Measure Absolute Angle At Power Take-Off Flange - AR41.10-P-0085-07MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 247

with code M005 (Vehicles with 4MATIC/all-wheel drive)

	Notes on measuring the drive shaft articulation angle		AH41.10-P-0002-01LF
	000 588 33 19 00 Inclinometer		WS26.00-P-0416B

Electronic inclination/propeller shaft articulation angle meter

Press "STEP" button on measuring instrument.
Articulation angle measurement is selected.

Display message menu

Courtesy of MERCEDES-BENZ USA
Press "STEP" button while main menu is displayed.
Measurement is selected.

Perform measurement of all angles without interruption. An angle that has already been measured can be measured a second time if required. To do so, with the Measurement menu displayed, press the "STEP" button repeatedly until the display indicates Ready to measure the relevant angle.

Display message main menu

Courtesy of MERCEDES-BENZ USA

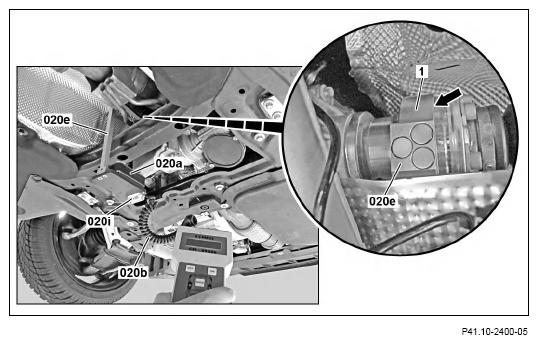

Measurement of angle 1 at flange (1) of power take-off
Clean contact surface of adapter (020e) at flange (1).
Position adapter (020e) onto flange (1) (magnetic).
Align adapter (020e) flush with edge (arrow) of flange (1).

There must be a gap between the adapter (020e) and the heat shield.
Align adapter (020e) horizontally using a spirit level (020i).

Courtesy of MERCEDES-BENZ USA
Place sensor (020a) on support plate of adapter (020e).
When each measurement is taken, the side of the sensor (020a) at which the spiral cable (020b) is connected must point in the direction of travel. Otherwise measurement errors can occur.

Make sure that the sensor (020a) is seated correctly in the holes of the support plate of the adapter (020e).

Otherwise measurement errors can occur.

The device is ready to take a measurement and the measured values are shown in the display.

Example illustration
Press "SAVE" button.
The values are saved.

Measurement values of display message for angle 1: reading, e.g. 1.92°

Courtesy of MERCEDES-BENZ USA

A confirmation message appears briefly.

Display message confirmation

Courtesy of MERCEDES-BENZ USA

The display then indicates that the device is ready for the next measurement of angle 2.

Courtesy of MERCEDES-BENZ USA
