Measure Absolute Angle At Front And Rear Half Of 2-Part Propeller Shaft - AR41.10-P-0085-12MFC
Model 118, 177, 247
with code M005 (Vehicles with 4MATIC/all-wheel drive)
| Notes on measuring the drive shaft articulation angle | AH41.10-P-0002-01LF | ||
| 000 588 33 19 00 Inclinometer | WS26.00-P-0416B |
Measurement of angle 2 on front half of propeller shaft (1)
Perform measurement of all angles without interruption. An angle that has already been measured can be measured a second time if required. To do so, with the Measurement menu displayed, press the "STEP" button repeatedly until the display indicates Ready to measure the relevant angle.
- Clean contact surface of sensor (020a) at front half of propeller shaft (1).

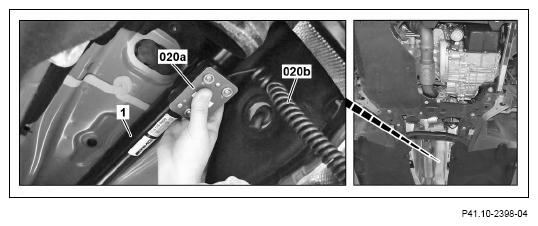

- Position sensor (020a) vertically from below on front half of propeller shaft (1) and press on firmly.
When each measurement is taken, the side of the sensor (020a) at which the spiral cable (020b) is connected must point in the direction of travel. False measurements can occur otherwise.
The four contact cones of the sensor (020a) must lie against the front half of the propeller shaft (1).
If the sensor (020a) is not positioned vertically from below, the fault message "Y-positional error - sensor??" appears. The measured angle cannot be saved.
Example illustration
The value measured is shown on the display.
- Press "SAVE" button.
The values are saved.
Measurement values of display message for angle 2: reading, e.g. 2.18°
A confirmation message appears briefly.
Display message confirmation
- Remove sensor (020a) from front half of propeller shaft (1).
Example illustration
The display then indicates that the device is ready for the next measurement (angle 3).
- Remove sensor (020a) from front half of propeller shaft (1).
Ready for measurement display message for angle 3
Measurement of angle 3 on rear half of propeller shaft (2)
- Clean contact surface of sensor (020a) at rear half of propeller shaft (2).

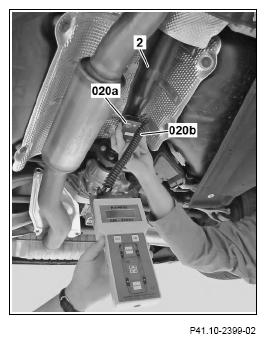

- Position sensor (020a) vertically from below on rear half of propeller shaft (2) and press on firmly.
When each measurement is taken, the side of the sensor (020a) at which the spiral cable (020b) is connected must point in the direction of travel. False measurements can occur otherwise.
The four contact cones of the sensor (020a) must lie against the rear half of the propeller shaft (2).
If the sensor (020a) is not positioned vertically from below, the fault message "Y-positional error - sensor??" appears. The measured angle cannot be saved.
Example illustration
The value measured is shown on the display.
- Press "SAVE" button.
The values are saved.
Measurement values on display message for angle piece 3: Display, e.g. 2.76°
A confirmation message appears briefly.
Display message confirmation
The display then indicates that the device is ready for the next measurement of angle 4.
Ready for measurement display message for angle 4
- Remove sensor (020a) from rear half of propeller shaft (2).
Example illustration
