Replacing Rear Bearing Of Front Axle Lower Wishbone - AR33.20-P-0527MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 243, 247

MODIFICATION NOTES

24.09.2020 Document completely revised.

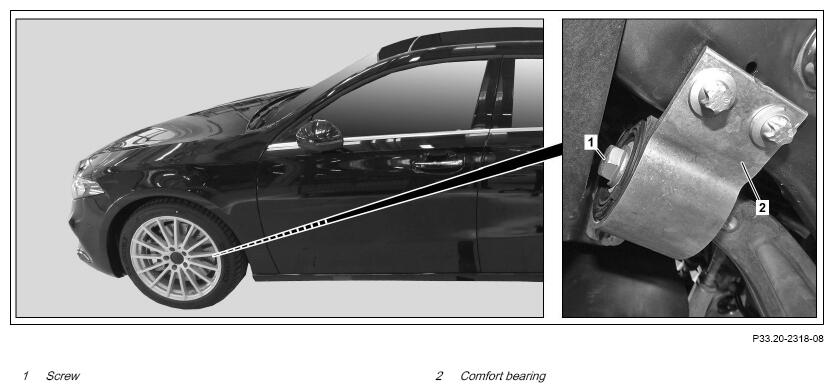

Fig 1: Rear Bearing Of Front Axle Lower Wishbone Components Location - Model 118 (Shown On Model 177.0)
G16049026Courtesy of MERCEDES-BENZ USA

Shown on model 177.0

DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
Topical note  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Remove front left or right wheel and tire assembly.   AR40.10-P-1102MFA
2 Remove lower engine compartment lining. Model 118, 177, 247 with engine 282 AR61.20-P-1105MFA
    Model 118, 177, 247 with engine 608, 654 AR61.20-P-1105MFE
    Model 243 AR61.20-P-1105EQA
3 Remove left or right rear section of front fender liner. Model 118, 177, 247 AR88.10-P-1301MFA
    Model 243 AR88.10-P-1301EQA
4 Remove left and right underfloor paneling. Model 243 AR61.30-P-1001EQA
5 Remove screw (1). INSTALLATION IMPORTANT Replace screw/bolt (1).
Only tighten screw (1) in ready-to-drive condition.
TORQUE SPECIFICATION Screw/bolt, transverse control arm to transverse control arm bearing
*BA33.15-P-1004-01F
6 Remove screw of comfort bearing (2) from longitudinal member. INSTALLATION IMPORTANT Clean thread in longitudinal member.
TORQUE SPECIFICATION Screw/bolt, transverse control arm bearing to longitudinal member
*BA33.15-P-1003-01F
7 Remove screws of comfort bearing (2) at front axle carrier. INSTALLATION IMPORTANT Clean threads in front axle carrier.
TORQUE SPECIFICATION Screw/bolt, transverse control arm bearing to front axle carrier
*BA33.15-P-1002-01F
8 Mark installation position of comfort bearing (2) relative to transverse control arm using suitable means and transfer marking to new comfort bearing (2). INSTALLATION IMPORTANT Pay attention to the markings.
9 Remove comfort bearing (2). INSTALLATION NOTES
Make sure that comfort mounting (2) is positioned correctly.
Otherwise, the comfort bearing (2) will be damaged.

10 Install in the reverse order.
TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number Designation Model 118, 177, 247 Model 243
BA33.15-P-1002-01F Screw/bolt, transverse control arm bearing to front axle carrier M10 Stage 1 Nm 50 50
Stage 2 ∠° 90 90
TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number Designation Model 118, 177, 247 Model 243
BA33.15-P-1003-01F Screw/bolt, transverse control arm bearing to longitudinal member M10 Stage 1 Nm 60 60
Stage 2 ∠° 45 45
TRAILING ARMS, TRANSVERSE CONTROL ARMS

Number Designation Model 118, 177, 247 Model 243
BA33.15-P-1004-01F Screw/bolt, transverse control arm to transverse control arm bearing M14 Stage 1 Nm 80 80
Stage 2 ∠° 90 90
