Retrofit Luggage Net With Holder - AZ68.50-P-0007-02MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247

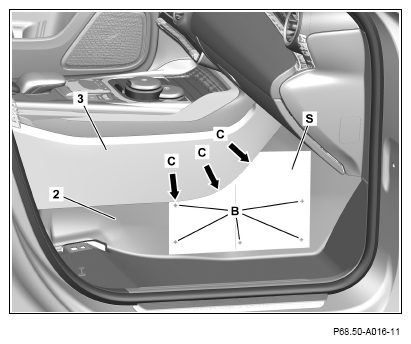

- Place drilling template for luggage net brackets (S) in position against front floor covering (2) at front passenger side.
Contour of drilling template for luggage net brackets (S) must match with contour of center console (3) (arrows C).
Model 118.### 2#, 177.### 2#, 247.### 2#
In the case of a right-hand drive vehicle, the drilling template for the luggage net brackets (S) must be positioned mirror-inverted.
- Transfer markings for bores (B) to front floor covering (2) using a suitable pen.

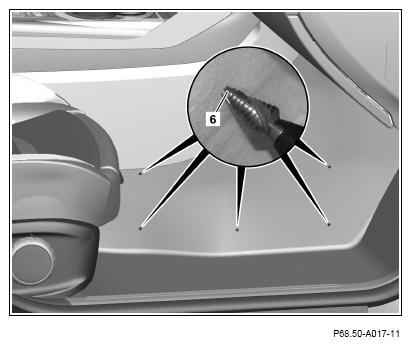

- Drill applied markings up to first step of stepped drill bit (6)
.
Carefully drill bores for luggage net brackets (1).
Body can be damaged.
First step corresponds to Ø 6 mm.
Max. drilling depth 10 mm.
- Screw brackets (4) into incorporated bores.
- Align brackets (4).
Opening at brackets (4) must point outwards.

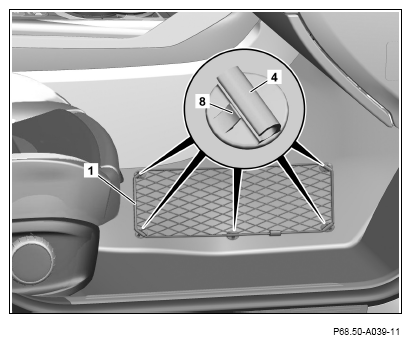

- Attach luggage net (1) to brackets (4).
Check strap of luggage net (1) must be located behind lugs (8) of brackets (4).
