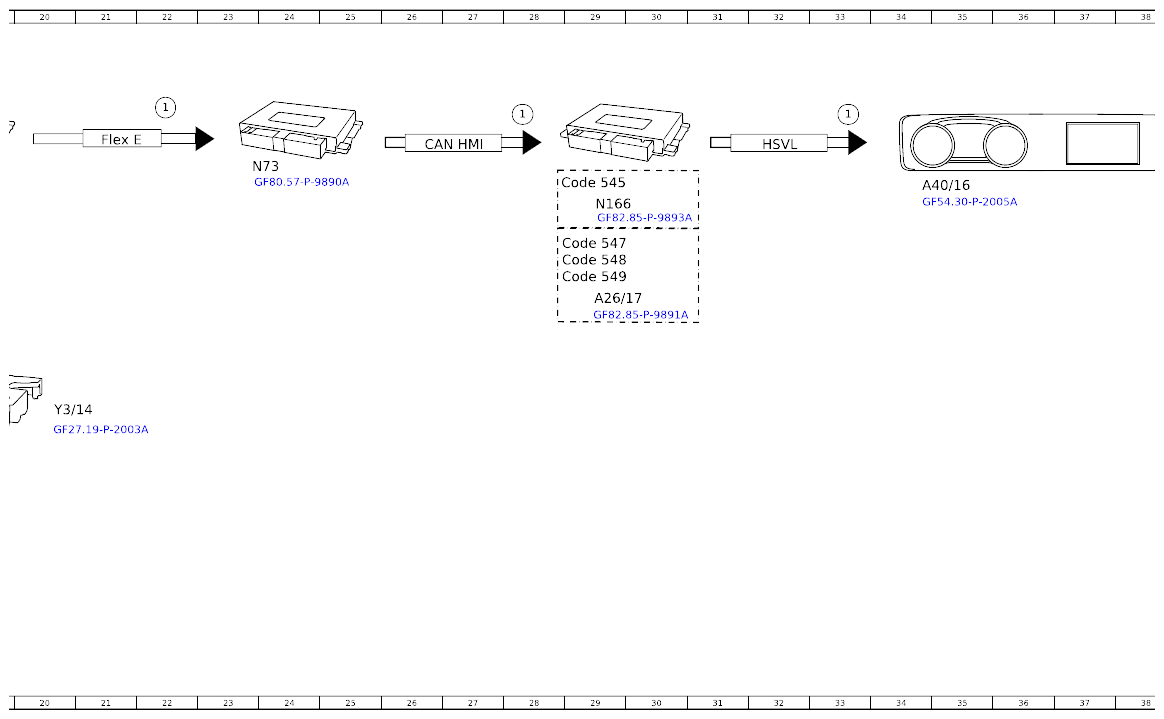

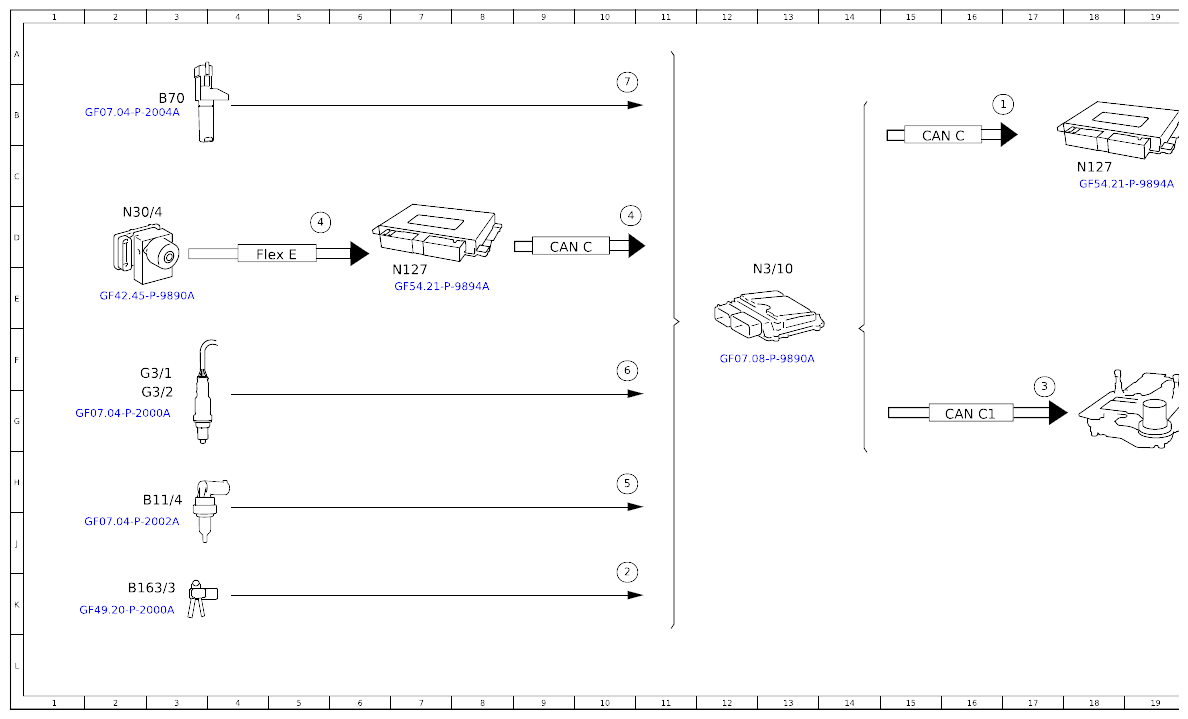

Function Schematic For Exhaust Gas Cleaning - PE49.00-P-2500-97M
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 28B |
| 1 | Engine diagnosis indicator lamp, actuation | 22B |
| 1 | Engine diagnosis indicator lamp, actuation | 33B |
| 1 | Engine diagnosis indicator lamp, actuation | 17B |
| 2 | Gasoline particulate filter differential pressure sensor, signal | 10K |
| 3 | Shift point, increase request | 17F |
| 4 | Wheel speed, signal | 5D |
| 4 | Wheel speed, signal | 10D |
| 5 | Coolant temperature sensor, signal | 10H |
| 6 | Oxygen sensor, sensor element, signal | 10F |
| 7 | Engine speed, signal | 10A |
| A26/17 | Head unit | 29E |
| A40/16 | Head unit/instrument cluster display cluster | 35C |
| B11/4 | Coolant temperature sensor | 3H |
| B163/3 | Gasoline particulate filter differential pressure sensor | 2K |
| B70 | Crankshaft Hall sensor | 3B |
| CAN C | Engine CAN | 9D |
| CAN C | Engine CAN | 15B |
| CAN C1 | Drive train CAN | 16G |
| CAN HMI | User interface CAN | 27C |
| Code 545 | Connect 5 (NTG6) | 28C |
| Code 547 | Connect 20 Entry (NTG6) | 28D |
| Code 548 | Connect 20 MID (NTG6) | 28D |
| Code 549 | Connect 20 HIGH (NTG6) | 28E |
| Flex E | Chassis FlexRay | 4D |
| Flex E | Chassis FlexRay | 21B |
| G3/1 | Oxygen sensor downstream of catalytic converter | 3F |
| G3/2 | Oxygen sensor upstream of catalytic converter | 3G |
| HSVL | High-speed video link | 32C |
| N127 | Drivetrain control unit | 7E |
| N127 | Drivetrain control unit | 18C |
| N166 | Head unit/instrument cluster control unit | 29D |
| N3/10 | ME-SFI [ME] control unit | 13E |
| N30/4 | Electronic Stability Program control unit | 2D |
| N73 | Electronic ignition switch control unit | 24C |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 20G |
