Fill Adblue (R) Tank - Perform External Filling - AP49.20-P-0100-02A

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 167, 177, 247, 257

with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)

Model 167, 213, 238, 257

with code 6U7 (BlueTEC SCR diesel exhaust gas cleaning, generation 4)

Model 463

as of model year 2019

with code M020 (BLUETEC)

	Risk of burn injuries and scalding when working at AdBlue lines and the components attached to them. Risk of injury to skin and eyes when handling AdBlue. Risk of poisoning caused by swallowing AdBlue	Pour AdBlue into suitable containers only. Wait until the pressure is released before starting any work on the exhaust aftertreatment system.	AS14.40-Z-0001-01A
	Notes on use, material properties and handling of AdBlue (R) for service		AH14.40-P-0001-02A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-17A	One-way filling hose	A 000 583 22 04
BR00.45-Z-1003-17A	10 L can of AdBlue®	A 004 989 04 20 12

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

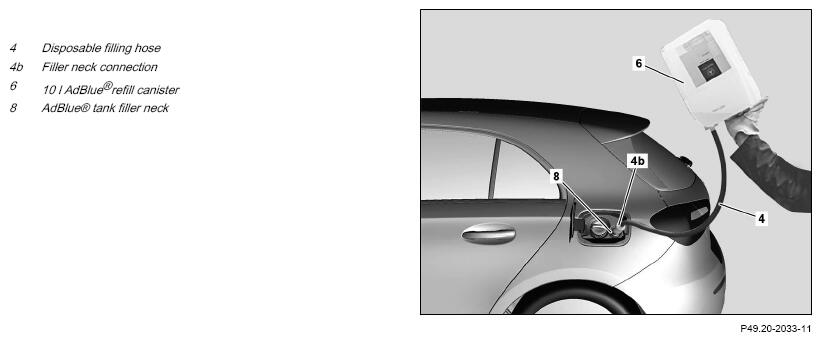

External fill, shown on model 177.0 with engine 608.9 with code U79 (BlueTEC SCR generation 3 diesel exhaust gas cleaning)

Courtesy of MERCEDES-BENZ USA

Open fuel filler flap.
Open cap on filler neck of AdBlue® tank (8).

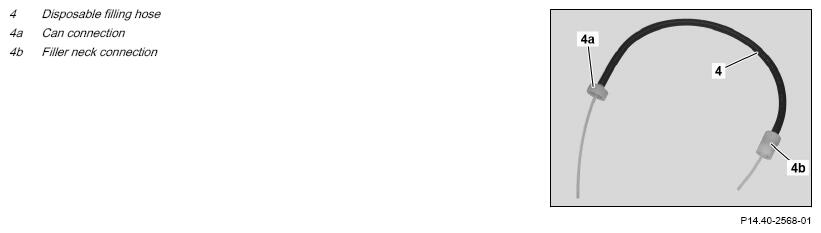

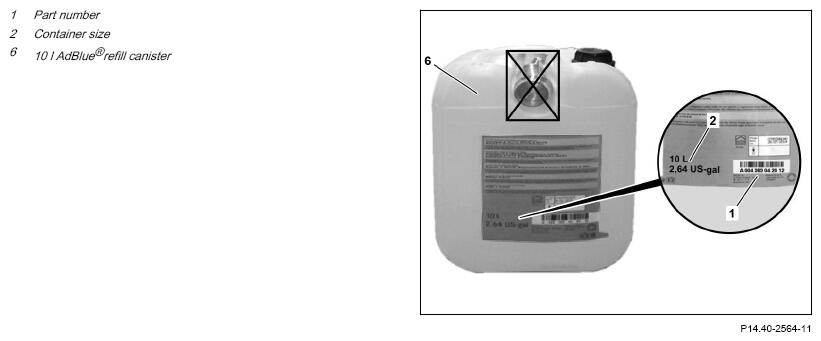

Open 10 L AdBlue® refill canister (6) and screw one-way filling hose (4) with canister connection (4a) onto 10 L AdBlue® refill canister (6).
Screw one-way filling hose (4) with filler neck connection (4b) onto filler neck of AdBlue® tank (8).
Lift 10 L AdBlue® refill canister (6) as per picture and drain into AdBlue® tank.
When the 10 L AdBlue® refill canister (6) no longer drains,

↓

the AdBlue® tank is then completely filled. Continue with operation step 6.

When 10 L AdBlue® refill canister (6) is completely drained,

↓

lower 10 L AdBlue® refill canister (6) below level of filler neck of AdBlue® tank (8). Unscrew 10 L AdBlue® refill canister (6) at canister connection (4a) of one-way filling hose (4) and dispose of it.

Tightly screw a new 10 L AdBlue® refill canister (6) to canister connection (4a) of one-way filling hose (4) and repeat operation step 5.
Lower 10 L AdBlue® refill canister (6) below level of filler neck of AdBlue® tank (8).
Carefully unscrew filler neck connection (4b) from filler neck of AdBlue® tank (8) and lift above level of 10 L AdBlue® refill canister (6). This is so that the AdBlue® can flow out of the one-way filling hose (4) back into the 10 L AdBlue® refill canister (6).
Unscrew canister connection (4a) from 10 L AdBlue® refill canister (6) and seal 10 L AdBlue® refill canister (6).
Dispose of one-way filling hose (4).
Seal cap of filler neck of AdBlue® tank (8).
Close fuel filler flap.
