Remove/Install Wi-Fi Antenna In Right Of Instrument Panel - AR82.85-P-0014MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
with code 521 (Connect 20 Mid (NTG7))
Model 118, 177, 243, 247
with code 525 (Connect 20 High (NTG7))
Model 118, 177, 243, 247
with code 534 (Connect 20 Premium (NTG7))
Model 118, 177, 243, 247
with code 548 (Connect 20 MID (NTG6))
Model 118, 177, 243, 247
with code 549 (Connect 20 HIGH (NTG6))
Model 118, 177, 247
with code 547 (Connect 20 Entry (NTG6))

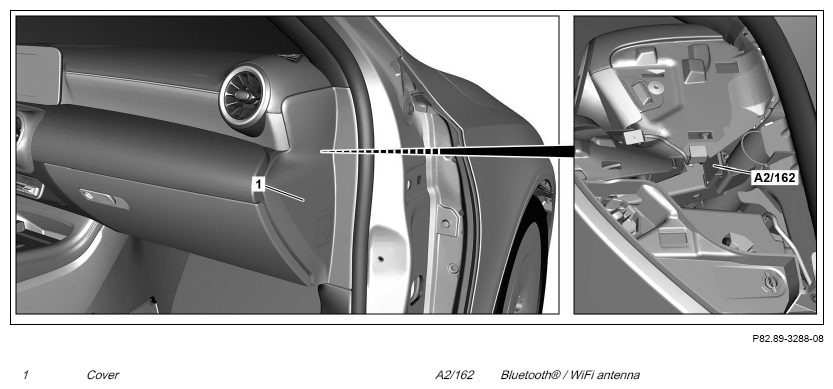

Shown on model 177.0
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Unclip trim (1) at right. | Fig 1 | |
| 3 | Unclip Bluetooth®/Wi-Fi antenna (A2/162) carefully from the holder. | ||
| 4 | Release and disconnect electrical connector from Bluetooth®/Wi-Fi antenna (A2/162). | ||
| 5 | Install in the reverse order. |
