Remove/Install Wi-Fi Antenna In Center Of Instrument Panel - AR82.85-P-0013MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177
with code 521 (Connect 20 Mid (NTG7))
Model 118, 177
with code 525 (Connect 20 High (NTG7))
Model 118, 177
with code 534 (Connect 20 Premium (NTG7))
Model 118, 177
with code 549 (Connect 20 HIGH (NTG6))
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove instrument panel. | AR68.10-P-1000MFA | |

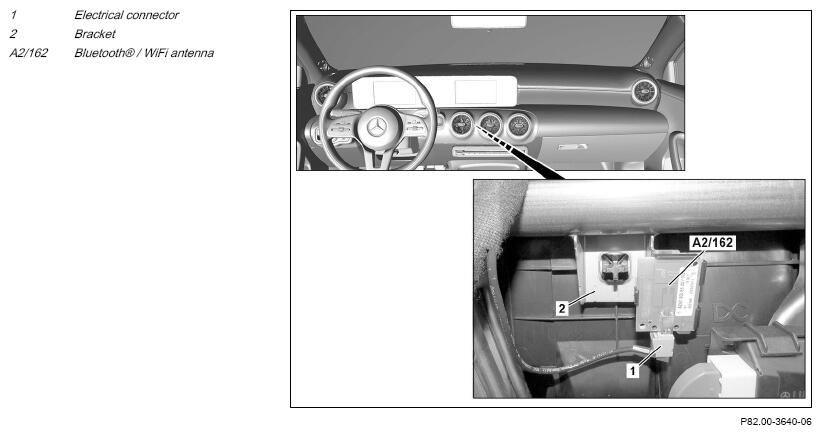

| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Unclip Bluetooth®/Wi-Fi antenna (A2/162) from bracket (2) and remove. | ||
| 4 | Install in the reverse order. |
