Check Engine Oil Pressure - AR18.00-P-1250MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in Model 118, 177, 247
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Check | |||
| 1 | Start engine and warm up to normal operating temperature (approx. 80°C). | ||
| 2 | Check engine oil temperature with the vehicle diagnosis system. | ||
| AD00.00-P-2000-06MFA | |||
| 3 | Check oil level of the engine approx. 5 min after switching off the engine at operating temperature and correct if necessary. | ||
The vehicle must be horizontal and standing on the wheel and tire assemblies. False measurements can occur otherwise. |
AP18.00-P-1812MFA | ||
| Remove/install | |||
| 4 | Remove oil filter element (1). | ||
| AP18.00-P-0101MFA | |||
| 5 | Screw in oil filter cover with tester cap (05). | *BA18.20-P-1001-01I | |

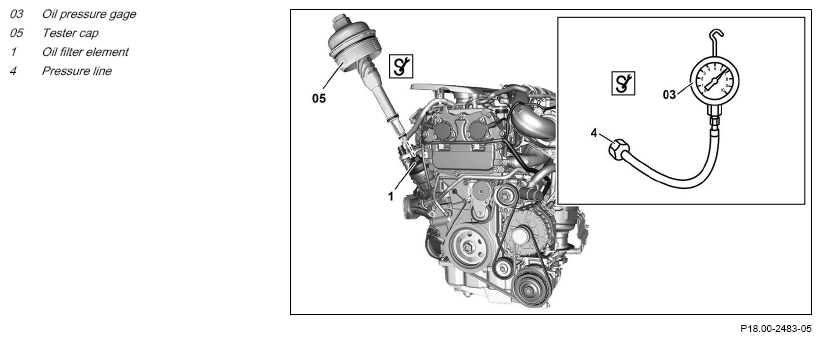

| Fig 1 | |||
| 6 | Connect pressure line (4) of the oil pressure gauge (03) to the tester cap (05). | Fig 2 | |
| Measure using pointer device | |||
| 7 | Start engine and measure oil pressure. | Position oil pressure gauge (03) so that it is not caught by the poly-V-belt when starting the engine. Damage can occur otherwise to the oil pressure gauge (03) and to the poly-V belt. |
*BE18.00-P-1001-01J |
| Fig 2 | |||
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check oil level of the engine approx. 5 min after switching off the engine at operating temperature and correct if necessary. | ||
The vehicle must be horizontal and standing on the wheel and tire assemblies. False measurements can occur otherwise. |
AP18.00-P-1812MFA | ||
| 10 | Carry out an engine test run; check engine for leak tightness while doing so. |
CHECK VALUES FOR OIL PRESSURE
| Number | Designation | Engine 260 | ||
|---|---|---|---|---|
| BE18.00-P-1001-01J | Oil pressure at operating temperature 90°C | - | bar | ≥0, 5 |
| at | 1/min | 650 | ||
| - | bar | ≥0, 9 | ||
| at | 1/min | 1000 | ||
| - | bar | ≥1, 7 | ||
| at | 1/min | 2000 | ||
| - | bar | ≥3, 5 | ||
| at | 1/min | 4000 | ||
| - | bar | - | ||
| at | 1/min | - | ||
OIL FILTER
| Number | Designation | Engine 260 | |
|---|---|---|---|
| BA18.20-P-1001-01I | Threaded cap to oil filter housing | Nm | 25 |
