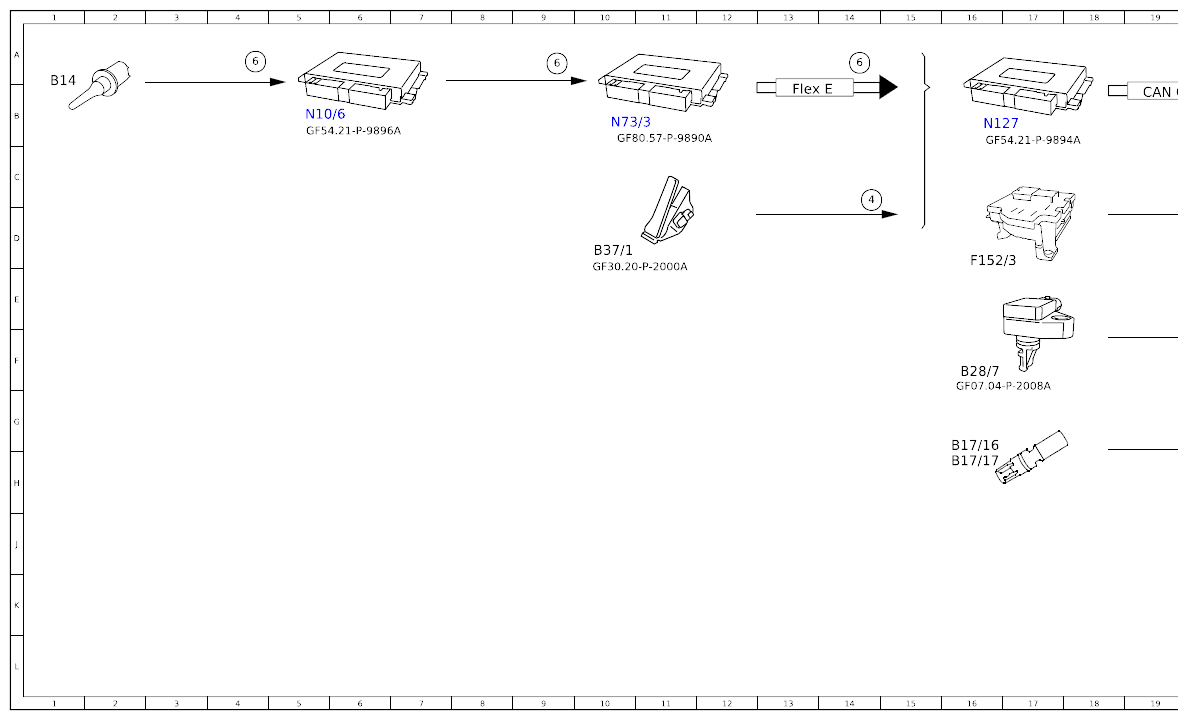

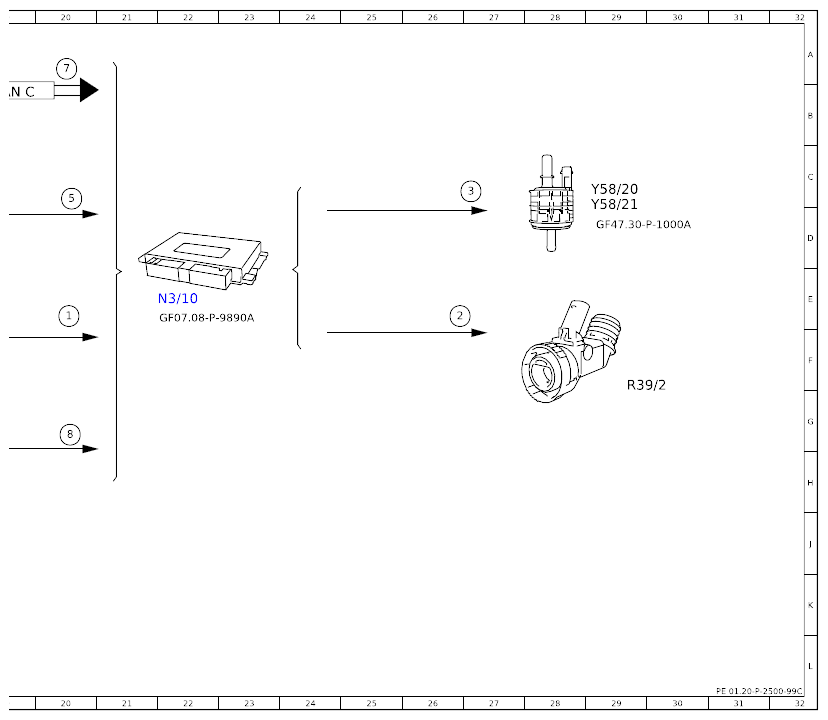

Function Schematic For Crankcase Ventilation System - PE01.20-P-2500-97B
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 177, 264 in model 167
Engine 256 in model 213, 238 as of model year 2021
Engine 260 in model 118, 177, 247
Engine 264 in model 213, 238, 257 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 20E |
| 2 | Vent line heater element, actuation | 26E |
| 3 | Partial load operation crankcase ventilation system valve, actuation | 26C |
| 4 | Accelerator pedal sensor, signal | 14C |
| 5 | Circuit 87, status | 20C |
| 6 | Outside temperature, signal | 4A |
| 6 | Outside temperature, signal | 9A |
| 6 | Outside temperature, signal | 14A |
| 7 | Engine management, communication | 20A |
| 8 | Intake manifold intake air temperature sensor, signal | 20G |
| B14 | Outside temperature sensor | 1B |
| B17/16 | Intake air temperature sensor | 16G |
| B17/17 | Intake air temperature sensor | 16H |
| B28/7 | Charge air pressure sensor | 16F |
| B37/1 | Pedal angle sensor | 10D |
| CAN C | Engine CAN | 19B |
| F152/3 | Fuse and relay module | 16D |
| Flex E | Chassis FlexRay | 13B |
| N10/6 | Front signal acquisition and actuation module control unit | 5B |
| N127 | Drivetrain control unit | 16B |
| N3/10 | Engine management control unit | 22E |
| N73/3 | Electronic ignition switch control unit | 10B |
| R39/2 | Full load operation vent line heater element | 29F |
| Y58/20 | Left purge control valve | 29C |
| Y58/21 | Right purge control valve | 29D |
