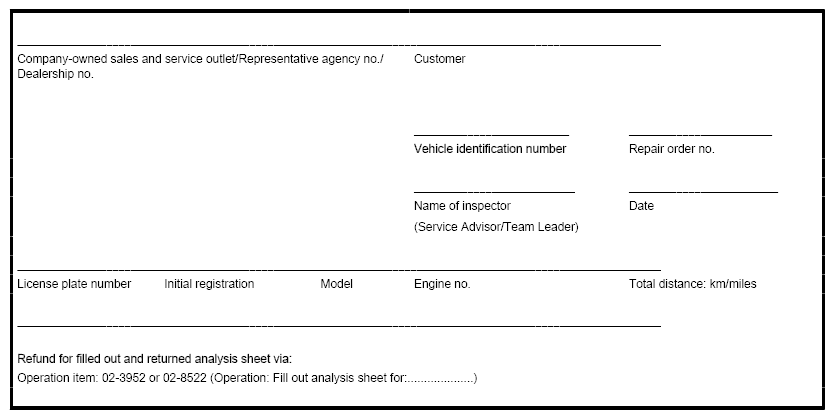

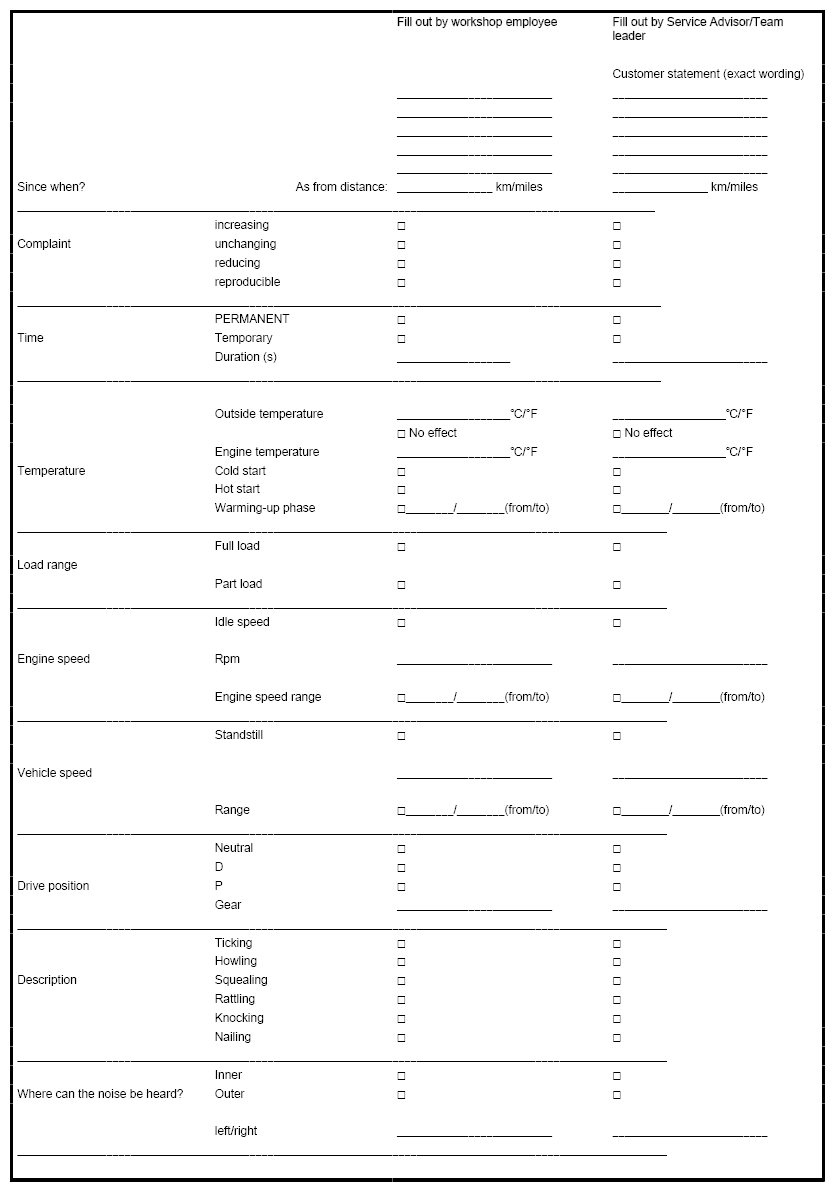

Analysis Sheet For Engine Noises, Form - OF00.10-P-3000-03A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine all (4xWD, CAR, Heavy transporter, Light transporter, smart)
| Also for workshop employee and workshop |
|---|
| Had the vehicle already visited a workshop due to this complaint? |
| Has the fuel been checked? (Incorrect fuel or fouling) |
| Does the vehicle correspond to the series production configuration? (Wheels, tires and performance tuning) |
| Does the complaint also occur on a reference vehicle? |
| Is it really the engine? (Engine mounts, exhaust system, body, adjacent lines, etc.) |
| Is it a mechanical noise or a combustion noise? |
| Locate the noise if possible. (Cylinder head or oil pan, front or rear) |
| Can the complaint be heard with and without belts? |
| Which components have already been renewed? |
| Which TIPS documents have been used as part of the diagnosis? |
| What tools are you missing to improve diagnosis? |
|
NOTE:
Only noise files with audible complaint (in MP3 or MP4 format) and specified engine speed are evaluated for the noise analysis.
Use the free text in the form to write a description of the complaint in your own words or the customer's words. TIPS cases for noise complaints will only be processed if the form has been filled out completely and correctly. |
| Area of oil pan | □ | |
| Location | Crank assembly | □ |
| Chain drive | □ | |
| Cylinder head | □ |
