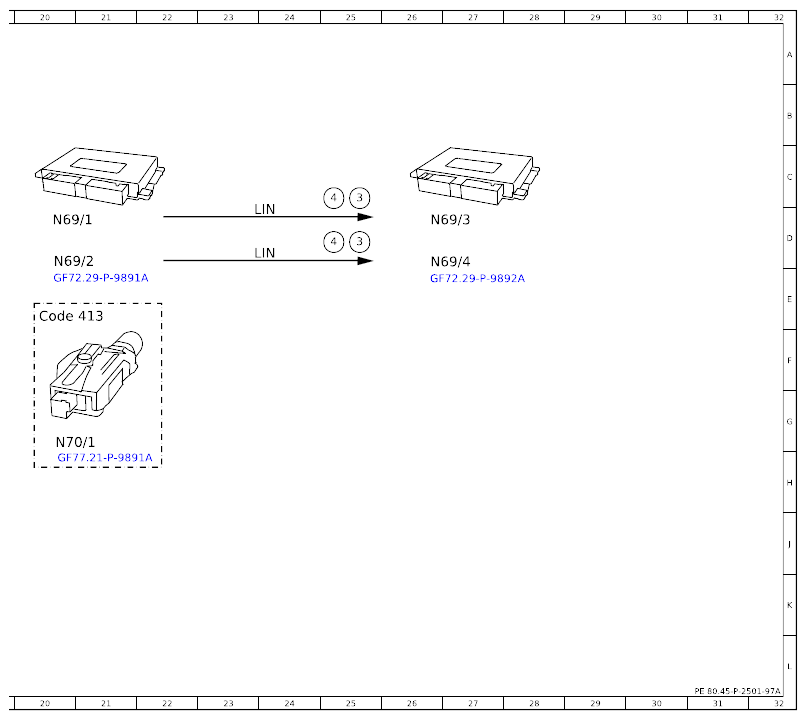

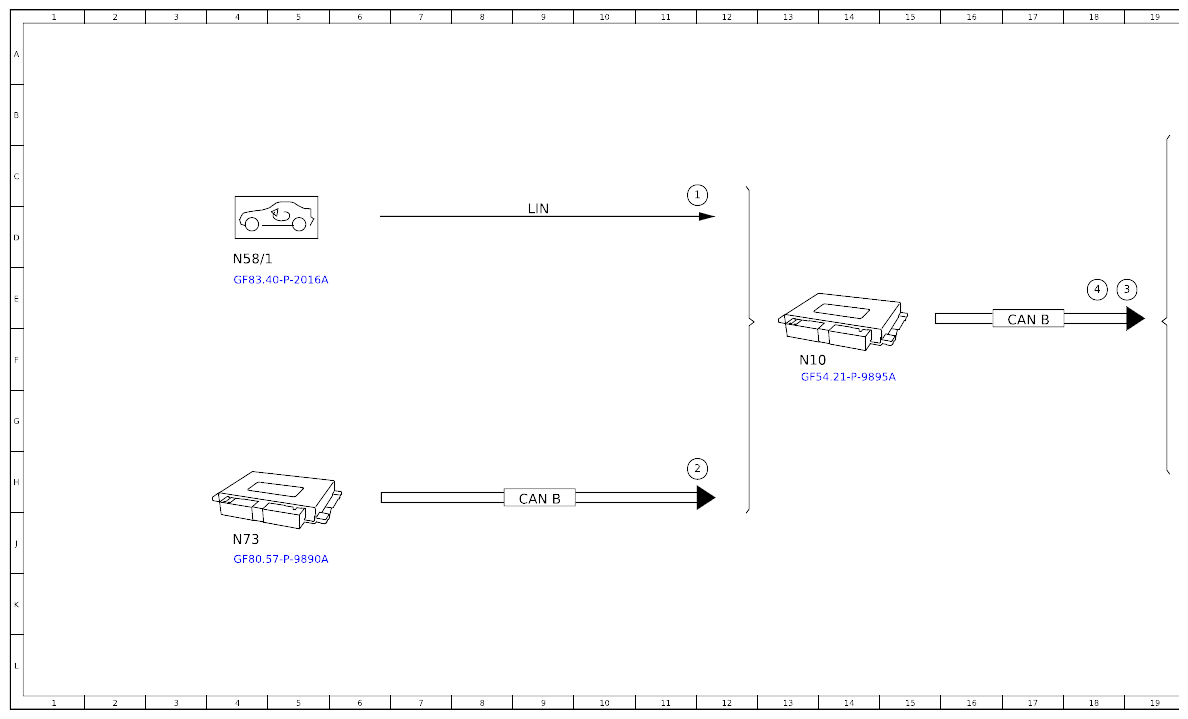

Trigger Convenience Feature Via Air-Recirculation Mode, Function Schematic - PE80.45-P-2501-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247 except code 494 (US version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Comfort closing/opening, request | 11C |
| 2 | Circuit 15, status | 12H |
| 3 | Convenience feature, status | 25C |
| 3 | Convenience feature, status | 25D |
| 3 | Convenience feature, status | 19E |
| 4 | Convenience feature direction, signal | 25C |
| 4 | Convenience feature direction, signal | 25D |
| 4 | Convenience feature direction, signal | 18E |
| CAN B | Interior CAN | 9H |
| CAN B | Interior CAN | 17E |
| Code 413 | Panoramic sliding sunroof/glass roof | 20E |
| LIN | Local Interconnect Network | 24D |
| LIN | Local Interconnect Network | 24D |
| LIN | Local Interconnect Network | 9D |
| N10 | Signal acquisition and actuation module | 13F |
| N58/1 | Climate control operating unit | 4D |
| N69/1 | Driver door control unit | 20D |
| N69/2 | Front passenger door control unit | 20D |
| N69/3 | Left rear door control unit | 26D |
| N69/4 | Right rear door control unit | 26D |
| N70/1 | Panoramic sliding sunroof control unit | 20G |
| N73 | Electronic ignition switch control unit | 4J |
