Function Schematic For Triggering Of Anti-Theft Alarm System Alarm - PE80.50-P-2500-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247 with code 551 (Standard anti-theft alarm system (ATA))
| Code: | Designation: | Position: |
|---|---|---|

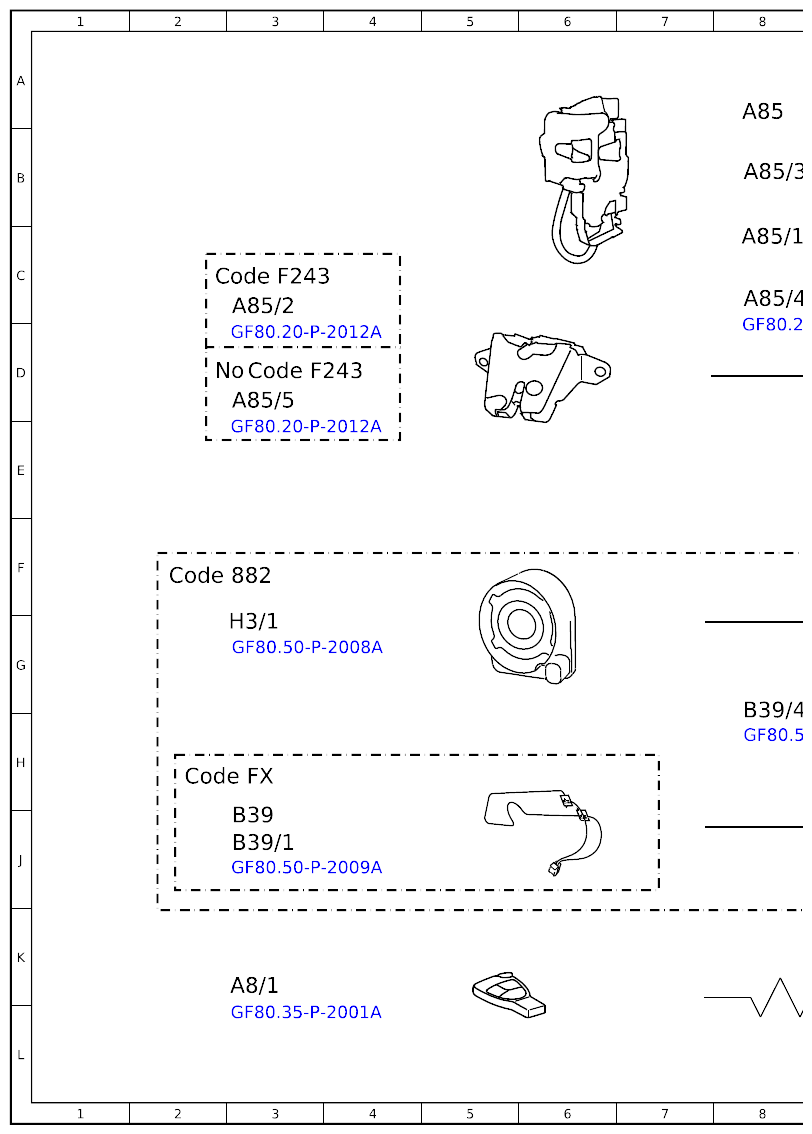

| A8/1 | Transmitter key | 3K |
| A85 | Driver door lock | 8A |
| A85/1 | Front passenger door lock | 8C |
| A85/2 | Liftgate latch | 3C |
| A85/3 | Left rear door lock | 8B |
| A85/4 | Right rear door lock | 8C |
| A85/5 | Trunk lid lock | 3D |
| B39 | Left rear window glass breakage sensor | 3J |
| B39/1 | Right rear window glass breakage sensor | 3J |
| B39/4 | Rear window glass breakage sensor | 8H |
| Code 882 | Anti-theft alarm system sensor system and siren | 2F |
| Code 882 | Anti-theft alarm system sensor system and siren | 37E |
| Code F243 | MODEL SERIES 243 | 2C |
| Code F243 | MODEL SERIES 243 | 3D |
| Code FX | SPORT-UTILITY-VEHICLE | 2H |
| H3/1 | Alarm signal siren | 3G |

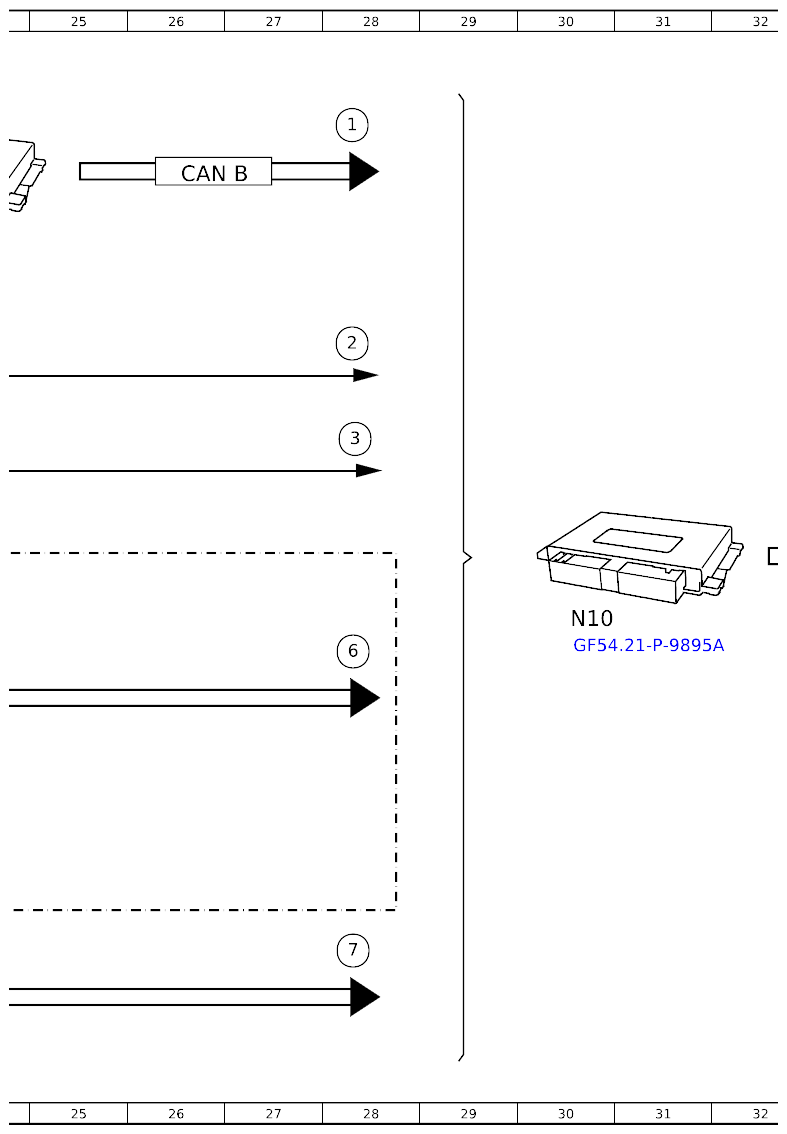

| N10 | Central control module | 30G |

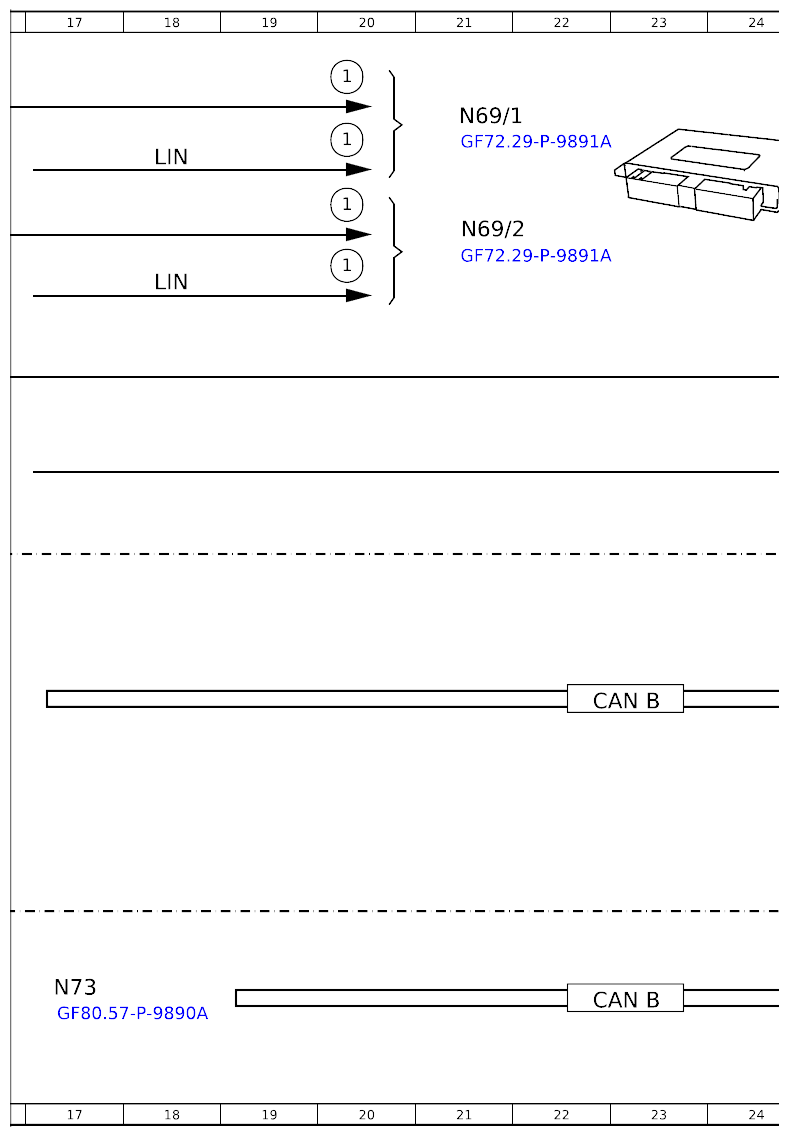

| N69/1 | Driver door control unit | 21A |
| N69/2 | Front passenger door control unit | 21C |

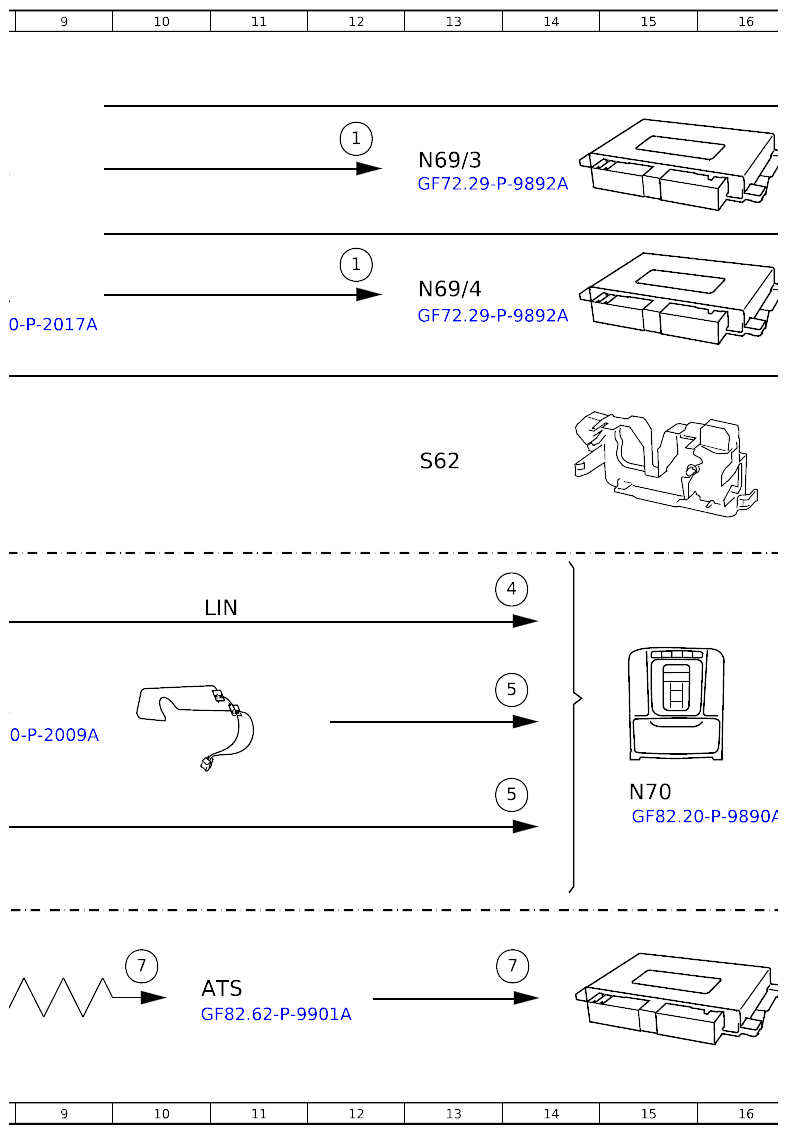

| N69/3 | Left rear door control unit | 13B |
| N69/4 | Right rear door control unit | 13C |
| N70 | Overhead control panel control unit | 15H |

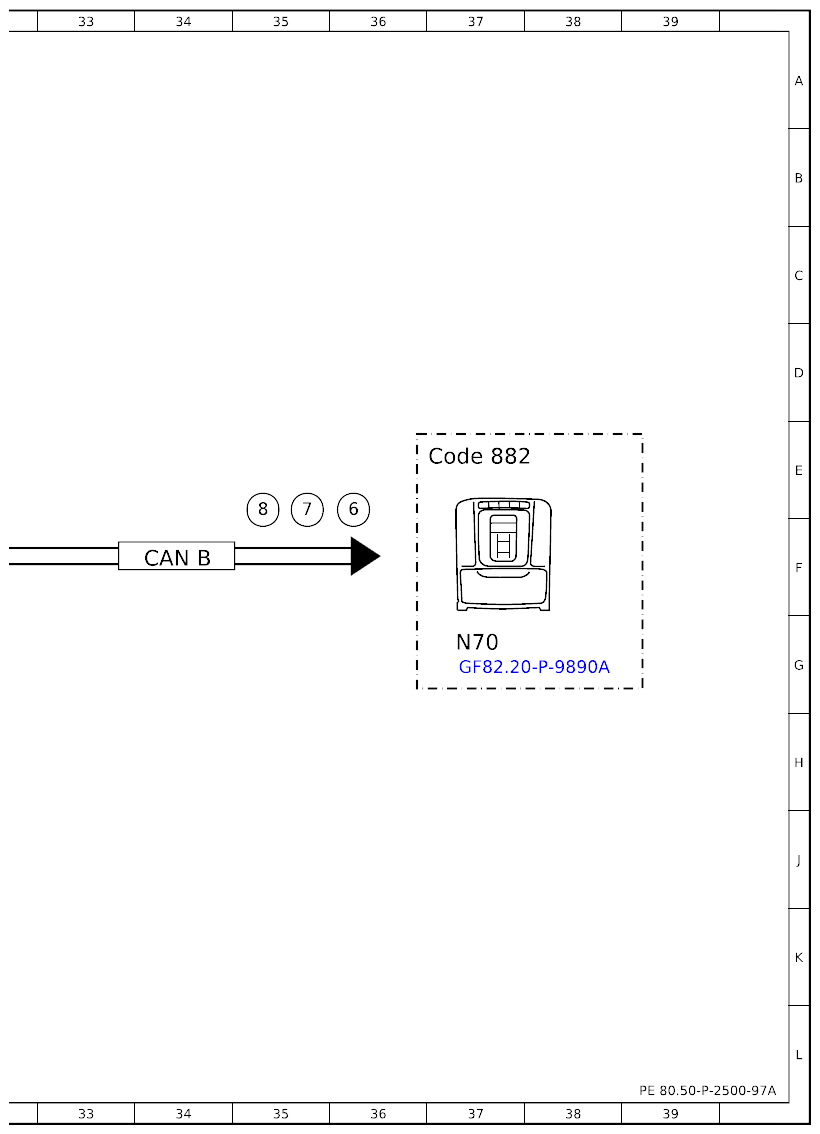

| N70 | Overhead control panel control unit | 37G |
| N73 | EIS [EZS] control unit | 17K |
| S62 | Center engine hood contact switch | 13E |
| CAN B | Interior CAN | 23G |
| CAN B | Interior CAN | 23L |
| CAN B | Interior CAN | 26B |
| CAN B | Interior CAN | 34F |
| LIN | Local Interconnect Network | 11F |
| LIN | Local Interconnect Network | 18C |
| LIN | Local Interconnect Network | 18B |
| 1 | Main locking position microswitch, status | 20A |
| 1 | Main locking position microswitch, status | 12B |
| 1 | Main locking position microswitch, status | 12C |
| 1 | Main locking position microswitch, status | 20B |
| 1 | Main locking position microswitch, status | 20B |
| 1 | Main locking position microswitch, status | 20C |
| 2 | Trunk lid/liftgate lock main catch switch, status | 28D |
| 3 | Engine hood contact switch, status | 28E |
| 4 | Alarm siren, status | 14F |
| 5 | Glass breakage sensor, status | 14G |
| 5 | Glass breakage sensor, status | 14H |
| 6 | ATA [EDW] alarm, signal | 28G |
| 6 | ATA [EDW] alarm, signal | 36E |
| 7 | Panic alarm, signal | 14K |
| 7 | Panic alarm, signal | 10K |
| 7 | Panic alarm, signal | 28K |
| 7 | Panic alarm, signal | 35E |
| 8 | Anti-theft alarm system, status | 35E |
