Remove/Install KEYLESS-GO Antenna On Underbody - AR80.61-P-0016MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
with code 889 (KEYLESS-GO)

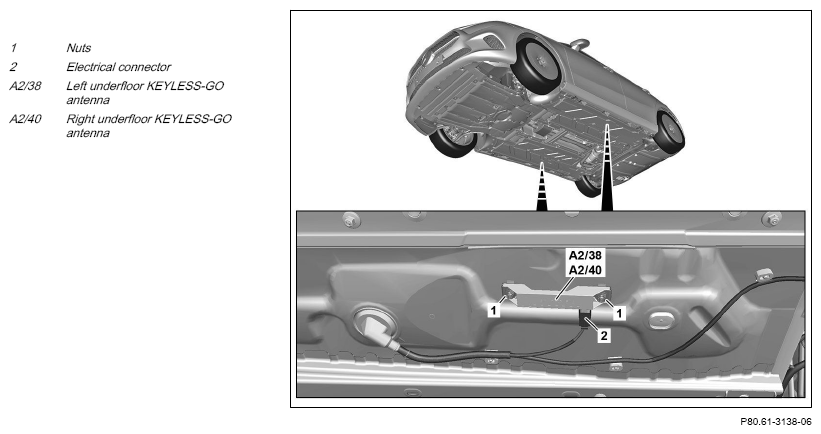

Shown on model 177.0 with code 889 (KEYLESS-GO)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove left or right underfloor paneling. | Model 118, 177, 247 with code 889 (KEYLESS-GO) | AR61.30-P-1001MFA |
| Model 243 with code 889 (KEYLESS-GO) | AR61.30-P-1001EQA | ||
| 3 | Release and disconnect electrical connector (2) at left or right underbody KEYLESS-GO antenna (A2/38, A2/40). | ||
| 4 | Remove nuts (1) from stud bolts and remove left or right underbody KEYLESS-GO antenna (A2/38, A2/40). | ||
| 5 | Install in the reverse order. |
