Remove/Install Center Console KEYLESS-GO Antenna - AR80.61-P-0041MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
with code 889 (KEYLESS-GO)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Lift up the cover on the center console until the electrical connector for the KEYLESS-GO antenna in the center console (A2/60) is accessible | This will result in damage to the lines which may impair their functional capability. |
AR68.20-P-2350MFA |
| 3 | Release and disconnect the electrical connector for the KEYLESS-GO antenna in the center console (A2/60) | ||

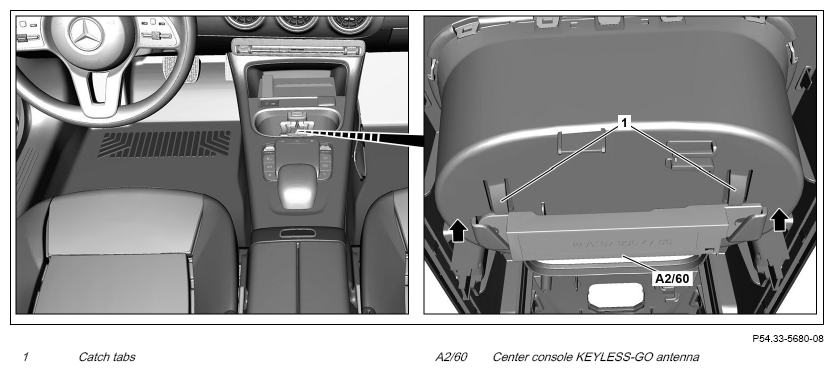

| 4 | Release catch tabs (1) with a suitable tool | ||
| 5 | Remove KEYLESS-GO antenna in the center console (A2/60) in direction of arrow | ||
| 6 | Install in the reverse order |
