Remove/Install Interior Central Locking Switch - AR80.20-P-2650MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 243, 247

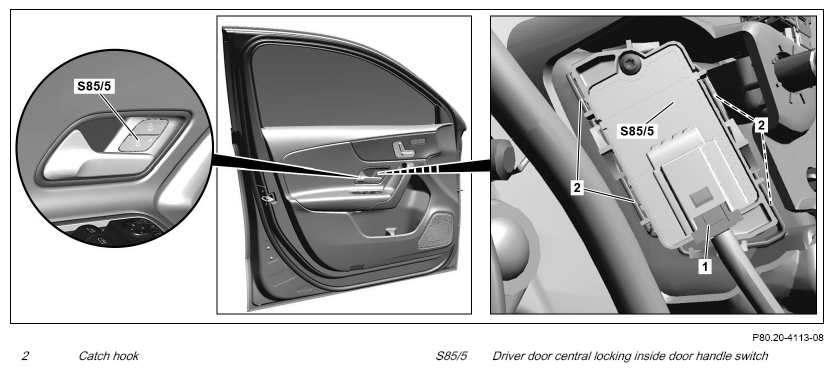

Fig 1: Interior Central Locking Switch Components Location - Model 118

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove door trim	Model 118, 177, 247	AR72.10-P-6575MFA
		Model 243	AR72.10-P-6575EQA
2	Trip the catch hook (2) and remove the driver's door central locking system inside door handle switch (S85/5)	Long wedge	Fig 2
3	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
