Register Vehicle As Present For Programming/Ordering A DAS4 Key, Form - OF80.57-P-3000-01A

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 117, 156, 166, 176, 207, 212, 218, 242, 246

with code 805 (Model year 2015)

Model 118, 167, 177, 190, 205, 206, 213, 217, 222, 223, 231, 232, 238, 243, 247, 253, 254, 257, 290, 292, 293, 294, 295, 296, 297

Model 166, 207, 212

with code 804 (Model year 2014)

Model 172

with code 806 (Model year 2016)

Model 447, 448, 907, 910

Model 463

with code XZ4 (Model year 2015)

Model 463

with code XZ5 (Model year 2016)

Model 463

with code XZ6 (Model year 2017)

Model 463

with code XZ7 (Model year 2018)

Service information: Order a replacement or additional key

SI80.57-P-0008A

MODIFICATION NOTES

18.01.2023

Document contents updated.

Use in special case: "Vehicle" cannot be registered as "present" because the owner is no longer in possession of a functional transmitter key".

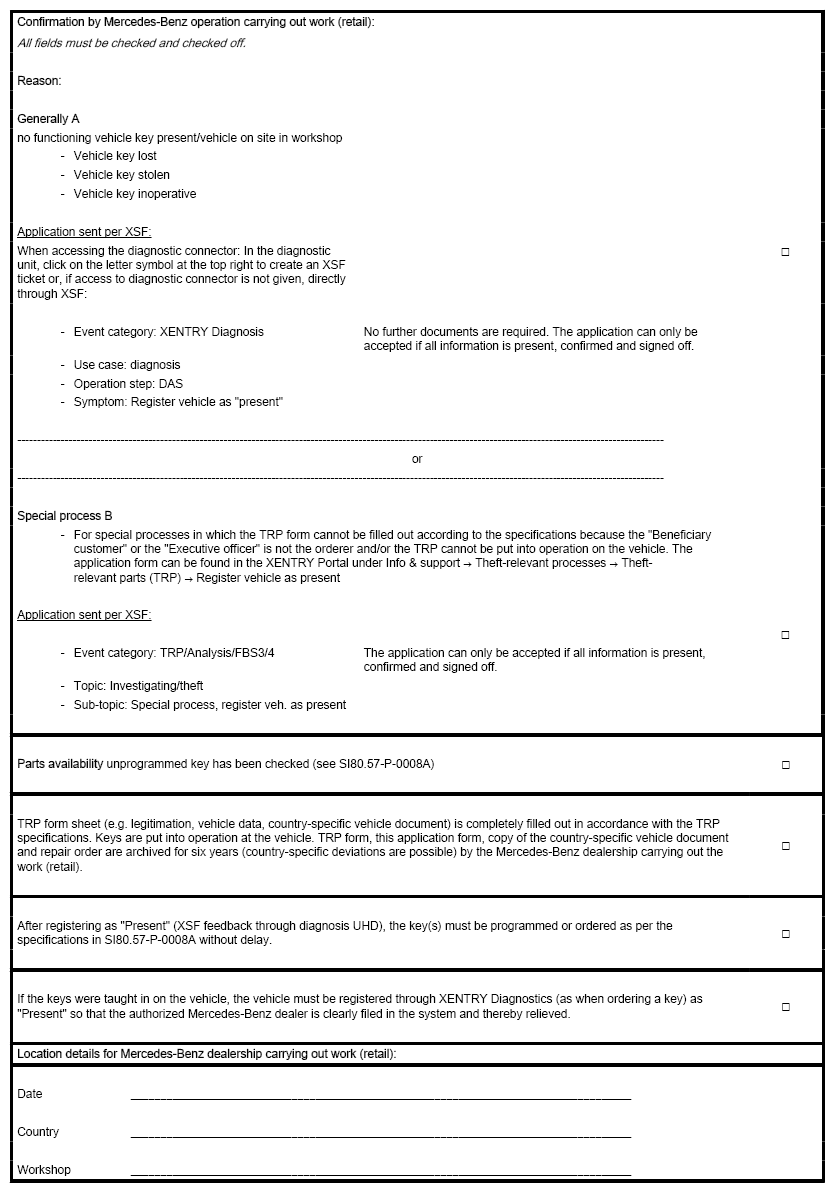

IMPORTANT: Please note the two different processes for registering presence and select the one that best matches your situation in order to avoid long runtimes. If the TPR form cannot be filled out in accordance with the specifications, please follow the special process (B) described below

Details regarding vehicle/order:

Vehicle identification number of affected vehicle ________________

Repair order number ________________

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Please consider that country-specific deviations may impact on the implementation process. The authorized Mercedes-Benz dealer in your particular country can give you more information on this.
