Trunk Lid/Liftgate Lock Element, Basic Function - GF80.40-P-2002A

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model All (CAR)

with code 881 (Remote boot-lid closing)

Model All (CAR)

with code 890 (Automatic rear-end door)

Courtesy of MERCEDES-BENZ USA

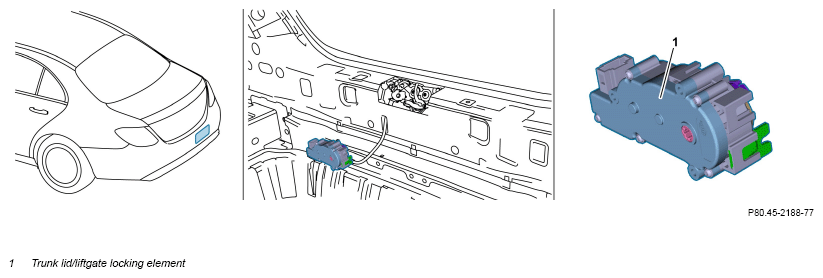

Example illustration of trunk lid/tailgate lock element in vehicles with remote trunk closing

Courtesy of MERCEDES-BENZ USA

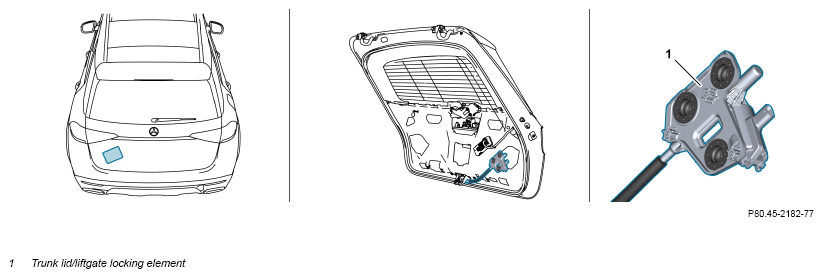

Example illustration of trunk lid/tailgate lock element in vehicles with EASY-PACK tailgate

Overview

This document contains information on:

General
Function

General

Vehicles with remote trunk closing

The trunk lid lock element is located behind the rear-end center-section trim.

Vehicles with EASY-PACK tailgate

The tailgate lock element is located on the left in the tailgate.

Function

The trunk lid/tailgate lock element (1) pulls the trunk lid or tailgate into the door lock. Depending on the model, the trunk lid/tailgate lock element (1) is actuated by the central signal acquisition and actuation module or the rear signal acquisition and actuation module.

Component descriptions
Remote trunk closing, component description	Model 223	GF80.20-P-0013A
	Model 297	GF80.20-P-0013D
	Model 295	GF80.20-P-0013E
	Model 296	GF80.20-P-0013G
	Model 294	GF80.20-P-0013N
