Trunk Lid/Liftgate Control Warning Buzzer, Basic Function - GF80.45-P-2015A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model All (CAR)
with code 881 (Remote boot-lid closing)
Model All (CAR)
with code 890 (Automatic rear-end door)

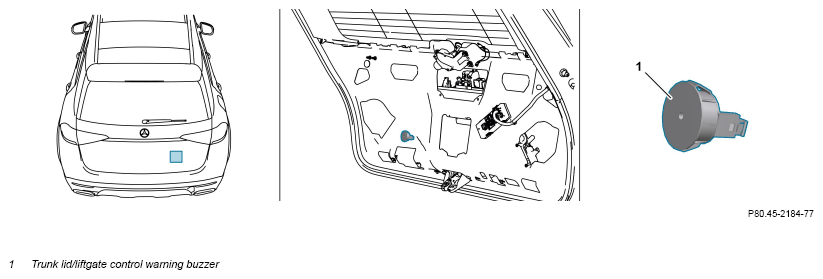

Sample diagram of trunk lid/tailgate control warning buzzer
Overview
This document contains information on:
- General
- Function
General
The trunk lid/tailgate control warning buzzer (1) is integrated in the trunk lid or in the tailgate.
Function
The trunk lid/tailgate control warning buzzer (1) reports back the opening/closing process of the trunk lid or the tailgate. The trunk lid/tailgate control warning buzzer (1) is actuated by the trunk lid/tailgate control unit.
| Component descriptions | |||
| Trunk lid/liftgate control warning buzzer, component description | Model 223 | GF80.20-P-6085A | |
| Model 243 | GF80.20-P-6085B | ||
| Model 206 | GF80.20-P-6085C | ||
| Model 297 | GF80.20-P-6085D | ||
| Model 295 | GF80.20-P-6085E | ||
| Model 232 | GF80.20-P-6085F | ||
| Model 296 | GF80.20-P-6085G | ||
| Model 254 | GF80.20-P-6085H | ||
| Model 214 | GF80.20-P-6085K | ||
| Model 118 as of model year 2023, model 247 as of model year 2022 | GF80.20-P-6085L | ||
| Model 167 as of model year 2023 | GF80.20-P-6085M | ||
| Model 294 | GF80.20-P-6085N | ||
| Model 192 | GF80.20-P-6085R |
