Trunk Lid/Liftgate Control Unit, Detailed Information - GF80.45-P-0002D

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118

with code 890 (Automatic rear-end door)

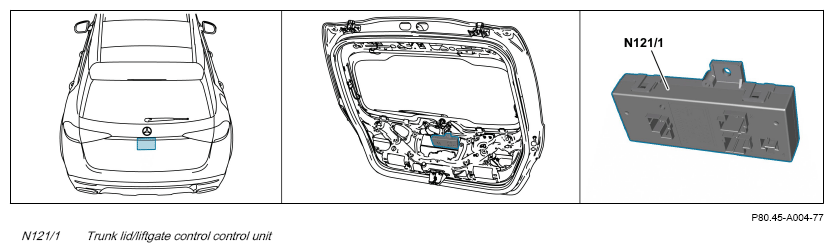

Fig 1: Trunk Lid/Liftgate Control Unit Components Location - Model 118 With Code 890
G16064145Courtesy of MERCEDES-BENZ USA

Location

The control unit for the trunk lid/liftgate control is located centrally on the liftgate.
