Function Schematic, Heat Rear Window - PE67.29-P-2500-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|

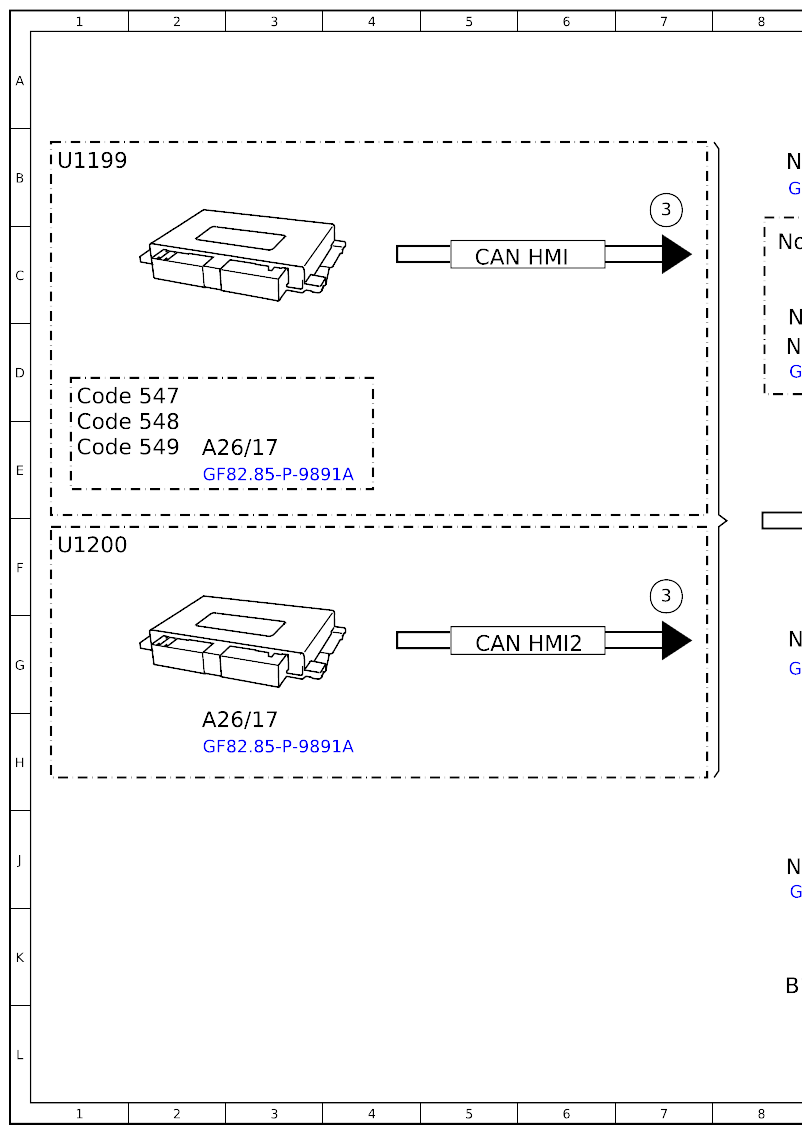

| A26/17 | Head unit | 2E |
| A26/17 | Head unit | 2H |
| B14 | Outside temperature display temperature sensor | 8K |
| Code 547 | Connect 20 Entry (NTG6) | 1D |
| Code 548 | Connect 20 MID (NTG6) | 1E |
| Code 549 | Connect 20 HIGH (NTG6) | 1E |
| Code F243 | MODEL SERIES 243 | 9C |

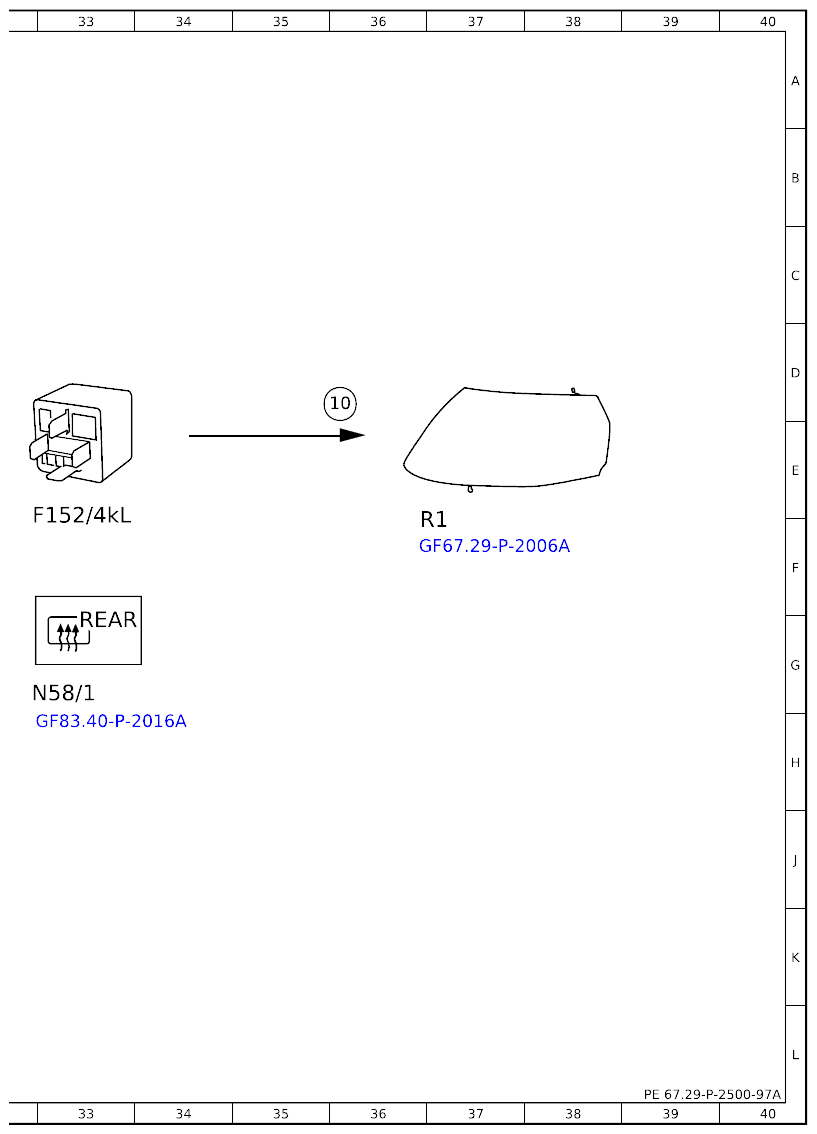

| F152/4kL | Heated rear window relay | 33F |

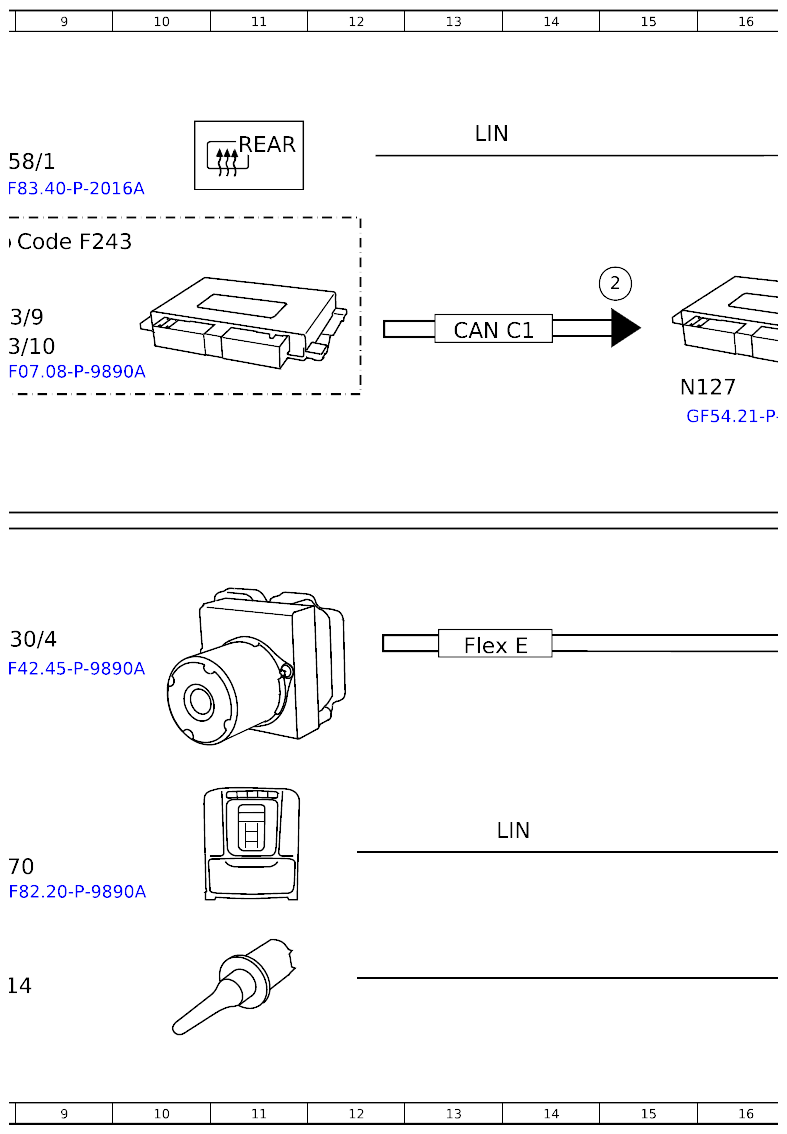

| N3/9 | CDI control unit | 8D |
| N3/10 | Engine management control unit | 8D |

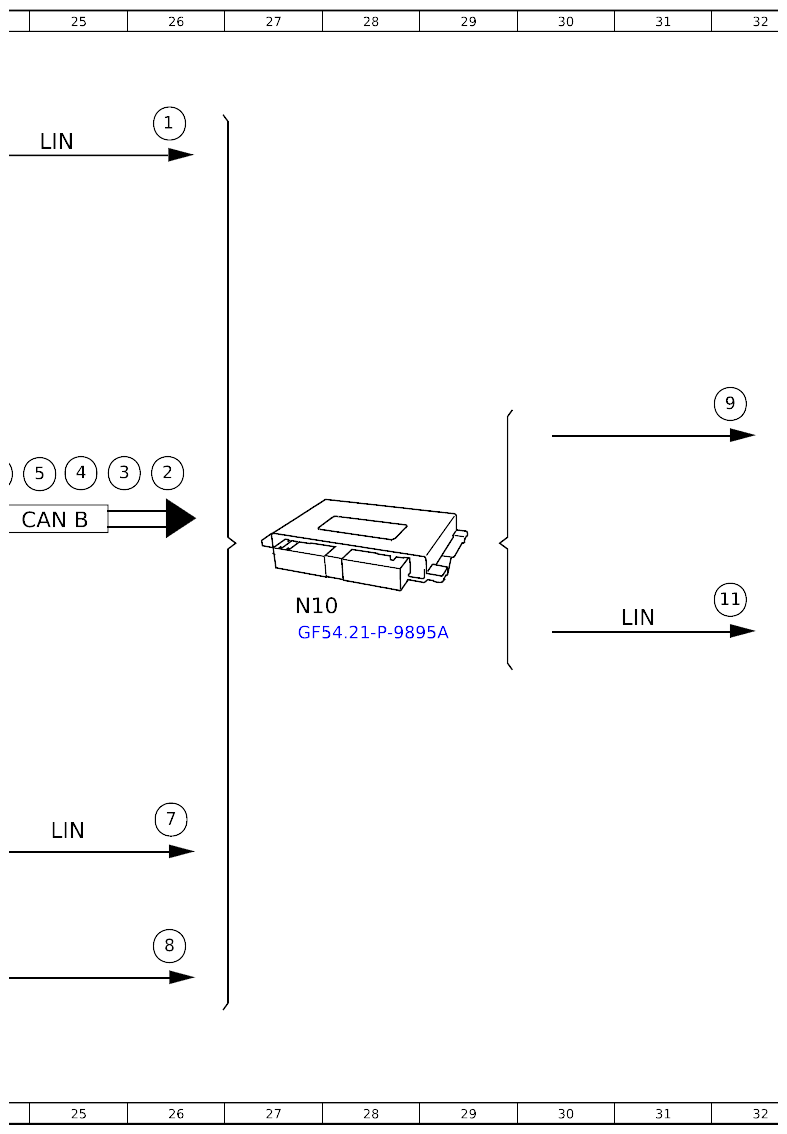

| N10 | Central control module | 27F |
| N30/4 | Electronic Stability Program (ESP®) control unit | 8G |
| N58/1 | Climate control operating unit | 33G |
| N58/1 | Climate control operating unit | 8B |
| N70 | Overhead control panel control unit | 8J |

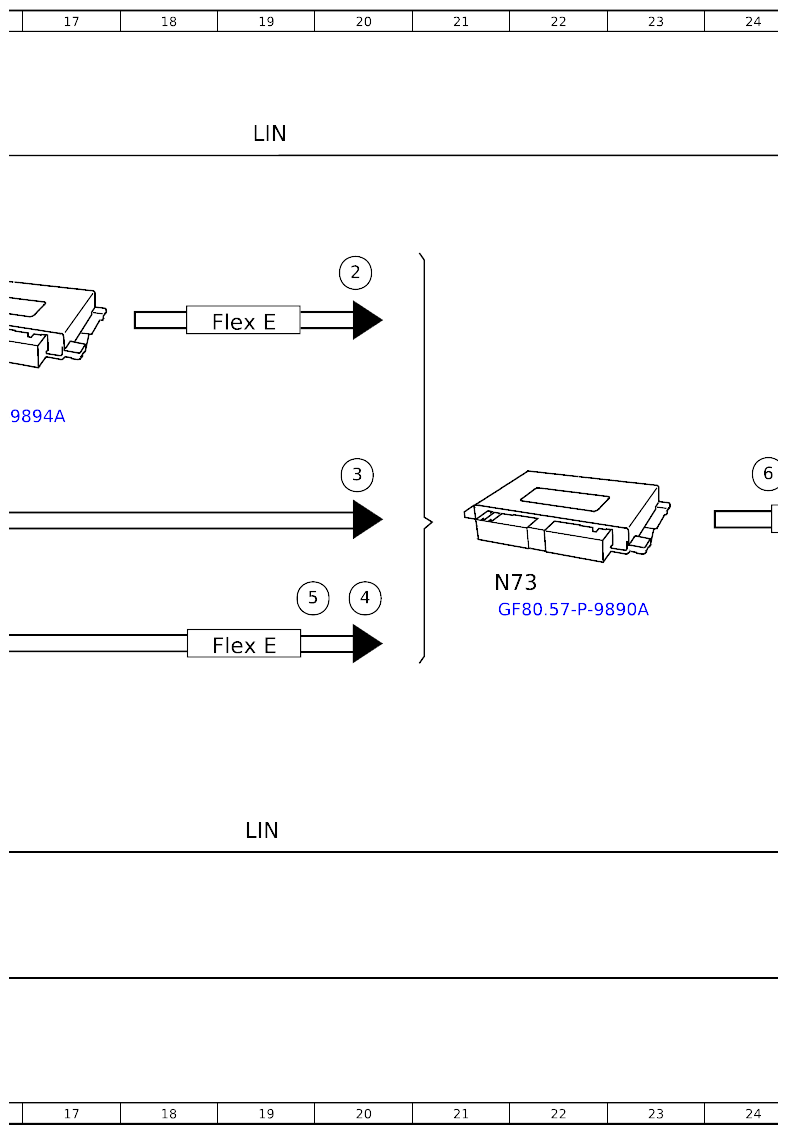

| N73 | EIS [EZS] control unit | 21F |
| N127 | Drivetrain control unit | 16D |
| R1 | Heated rear window | 36F |
| U1199 | Valid for vehicles up to facelift | 1B |
| U1200 | Valid for vehicles as of facelift | 1F |
| CAN B | Interior CAN | 25F |
| CAN C1 | CAN 1 for drive | 13D |
| CAN HMI | User interface CAN | 5C |
| CAN HMI2 | CAN 2 for user interface | 5G |
| Flex E | Chassis FlexRay | 19D |
| Flex E | Chassis FlexRay | 19G |
| Flex E | Chassis FlexRay | 13G |
| LIN | Local Interconnect Network | 25B |
| LIN | Local Interconnect Network | 31G |
| LIN | Local Interconnect Network | 25J |
| LIN | Local Interconnect Network | 13B |
| LIN | Local Interconnect Network | 19J |
| LIN | Local Interconnect Network | 19B |
| LIN | Local Interconnect Network | 14J |
| 1 | Rear window heater button, status | 26A |
| 2 | Switch on additional current consumers, request | 26E |
| 2 | Switch on additional current consumers, request | 15C |
| 2 | Switch on additional current consumers, request | 20C |
| 3 | Rear window heater, request | 20E |
| 3 | Rear window heater, request | 25E |
| 3 | Rear window heater, request | 7B |
| 3 | Rear window heater, request | 7F |
| 4 | PRE-SAFE®, status | 20F |
| 4 | PRE-SAFE®, status | 25E |
| 5 | Vehicle speed, signal | 19F |
| 5 | Vehicle speed, signal | 25E |
| 6 | Circuit 15, status | 24E |
| 7 | Interior temperature, signal | 26J |
| 8 | Outside temperature sensor, signal | 26K |
| 9 | Rear window heater relay, actuation | 32D |
| 10 | Rear window heater, actuation | 36D |
| 11 | Rear window heater, status | 32F |
