Prepare Body Flange For Installation Of Window - AR67.10-P-1501-01MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
The bonding area must be free of dust and grease.
Otherwise, the adhesive force of the adhesive material will be impaired.
If the degree of damage is ≤ 10%, repair with primer stick. If the degree of damage is > 10 %, coat body flange with primer filler.
Otherwise corrosion damage may occur.
Use only primer fillers and primer sticks approved by Daimler AG: http://xentryportal.mercedes-benz.com
Use constituents of repair kit.
Use the repair kit specified in the EPC.

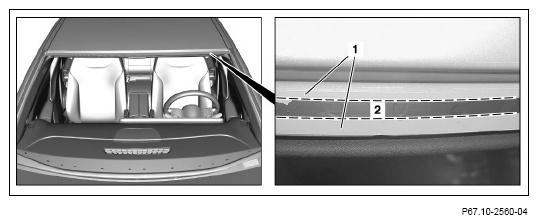

- Level residual adhesive material on body flanges (1) with a suitable scraper to a height of approx. 2 mm and remove loose residual adhesive material.
- Clean working area.
- Clean bonding area (2) between body flanges (1) with an assembly cleaner and a dry cloth.
- Repair paint damage in bonding area (2) and on body flanges (1) with a primer stick or primer filler.
Observe the manufacturer's specifications for the curing and processing time of the primer filler.
- Apply primer onto body flanges (1) in areas with missing or damaged residual adhesive material.
The primer must flash off for at least 10 min.
Otherwise, the adhesive force of the adhesive material will be impaired.
