Perform Stone Chipping Repair - AR67.10-P-1601LF
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model All (CAR)
except code Z04 (Light armoring)
except code Z05 (B5 armoring on special protection version)
except code Z06 (B6 armoring)
except code Z07 (B7 armoring on special protection version)
Shown on model 222
| Notes on damage and stone chipping repairs on laminated glass windows | AH67.10-P-0003-01A | ||
| Check | |||

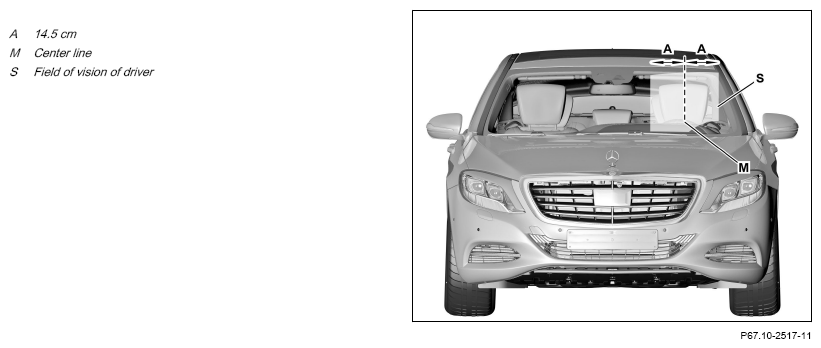

| 1 | Check whether stone chipping is in field of vision of driver (S). | Do not repair stone marks in field of vision of driver (S). A stone chipping repair in the field of vision of driver (S) is legally prohibited. The imaginary center line (M) is formed by the center point of sight of the driver (head restraint center line) to the center of the steering wheel, parallel to the vehicle longitudinal axis. Measure 14.5 cm (A) in both directions starting from the roof center line (M). The field of vision of the driver (S) is restricted at the top and bottom by the windshield wipe pattern. |
|

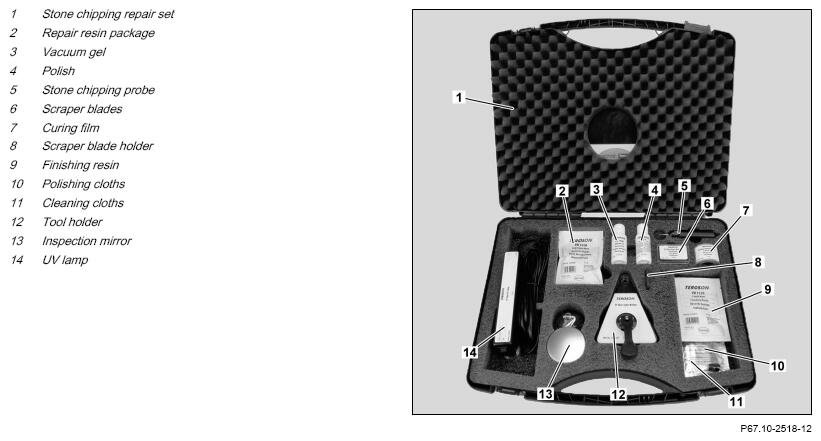

| 2 | Check the stone chipping repair set (1) for completeness, shelf life and functional capability. | TEROSON VR 1500, Glass repair kit | *BR00.45-Z-1025-08A |
| Perform stone chipping repair | |||

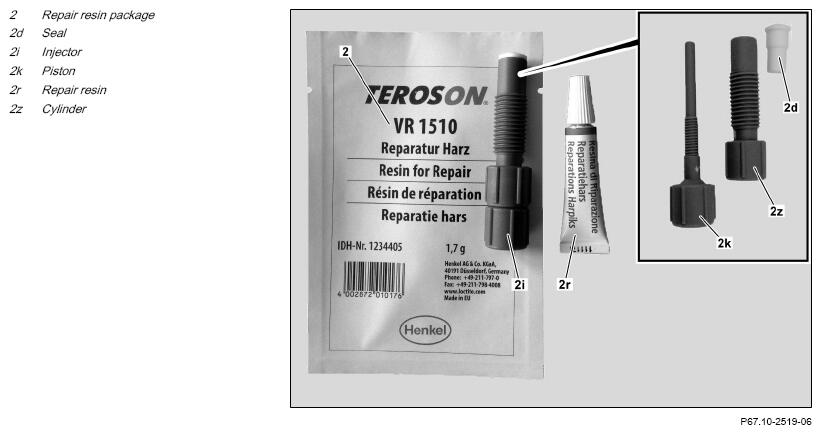

| 3 | Perform stone chipping repair. | Only perform stone chipping repair if stone chipping is located outside the field of vision of driver (S), the stone chipping repair set (1) is complete and functionally capable and the shelf life date has not been exceeded. Do not perform stone chipping repair where repair point is exposed to direct sunlight. Premature curing of the repair resin (2r) will otherwise occur. |
AR67.10-P-1601-01LF |
| TEROSON VR 1500, Glass repair kit | *BR00.45-Z-1025-08A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-08A | TEROSON VR 1500, Glass repair kit | Henkel PLC & Co. KGaA http://www.loctite.de |
