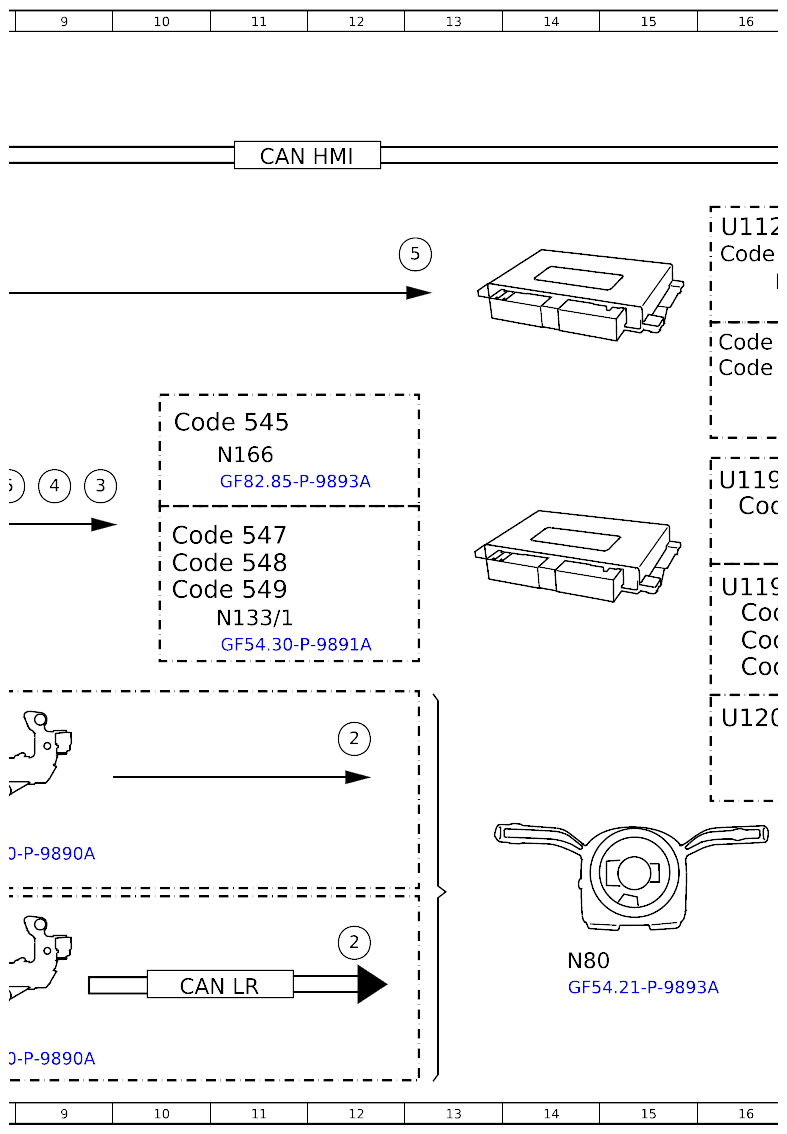

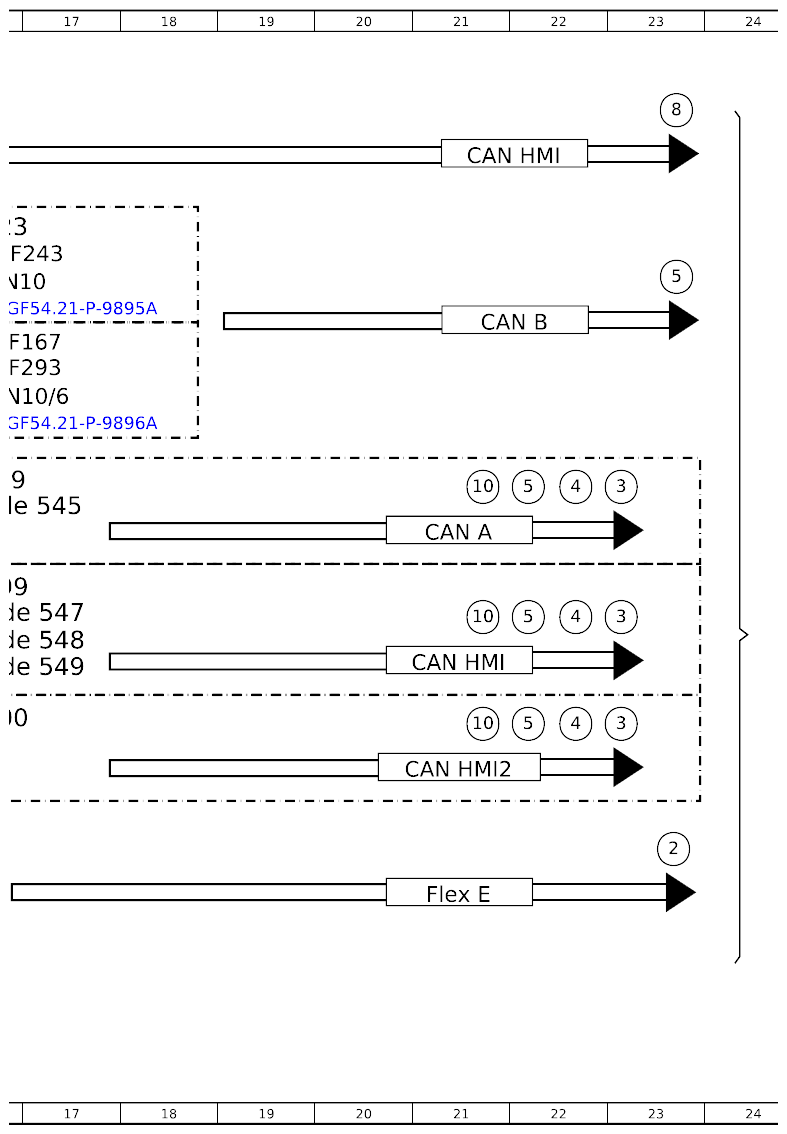

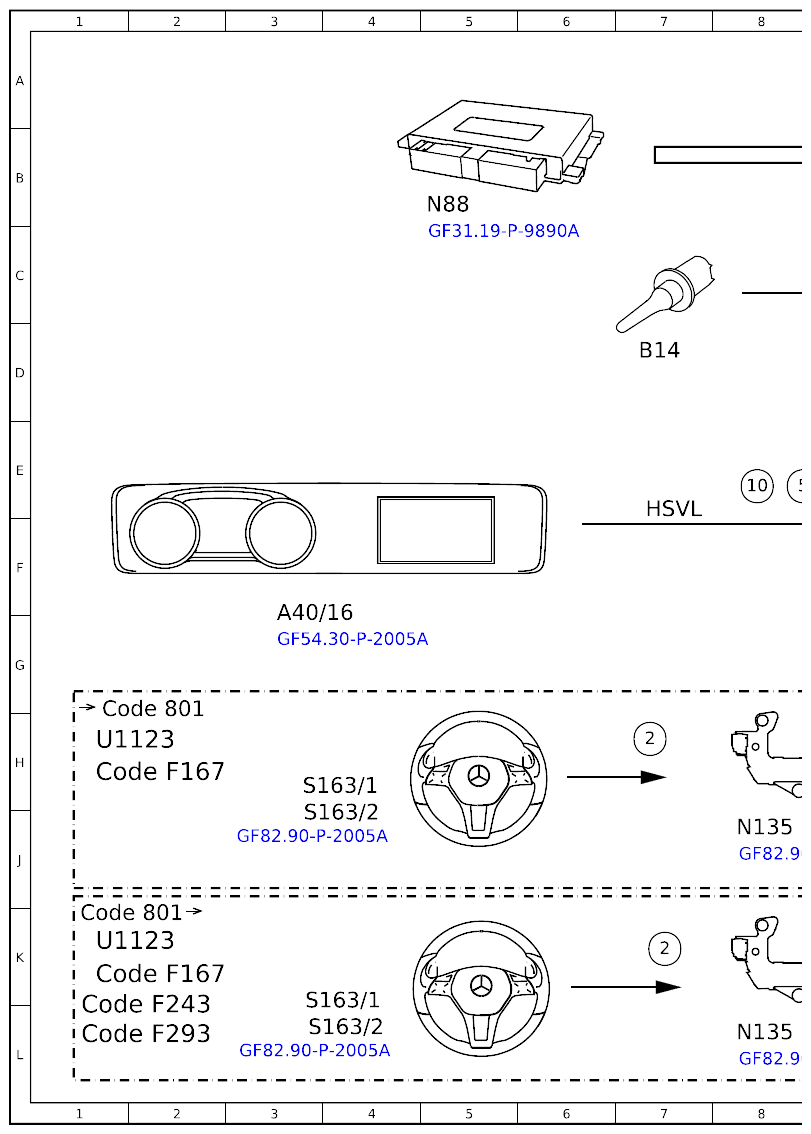

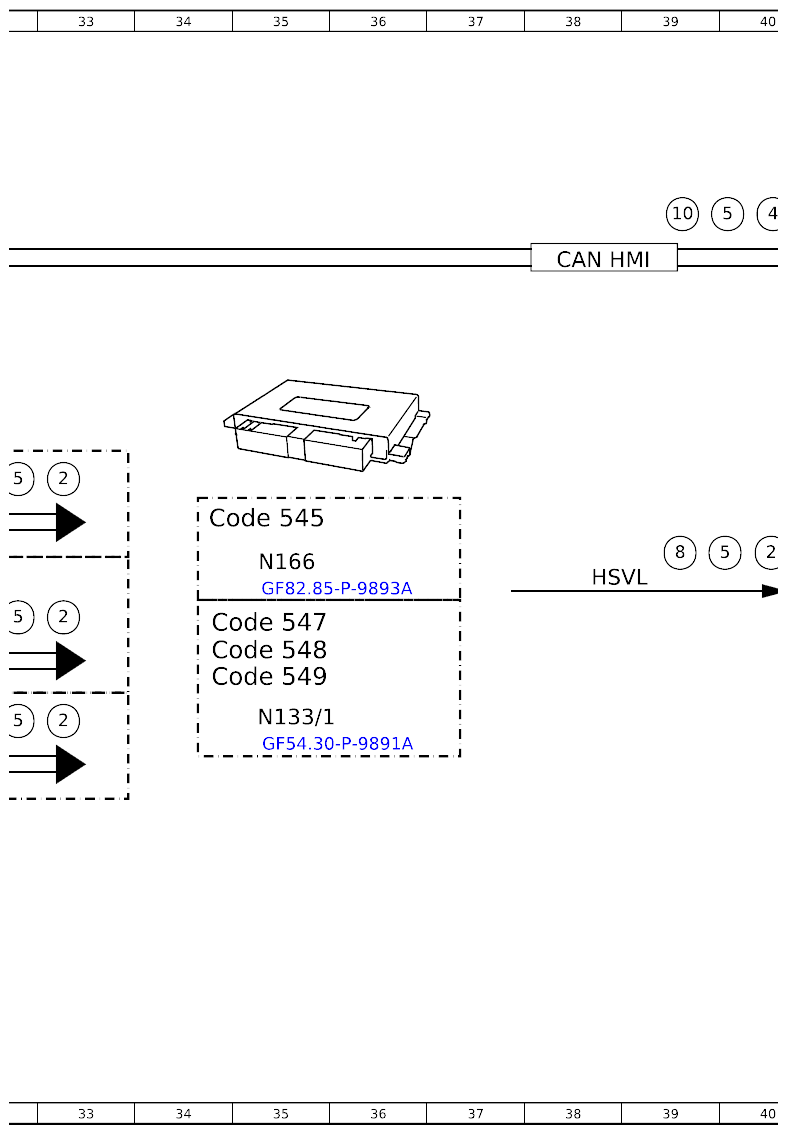

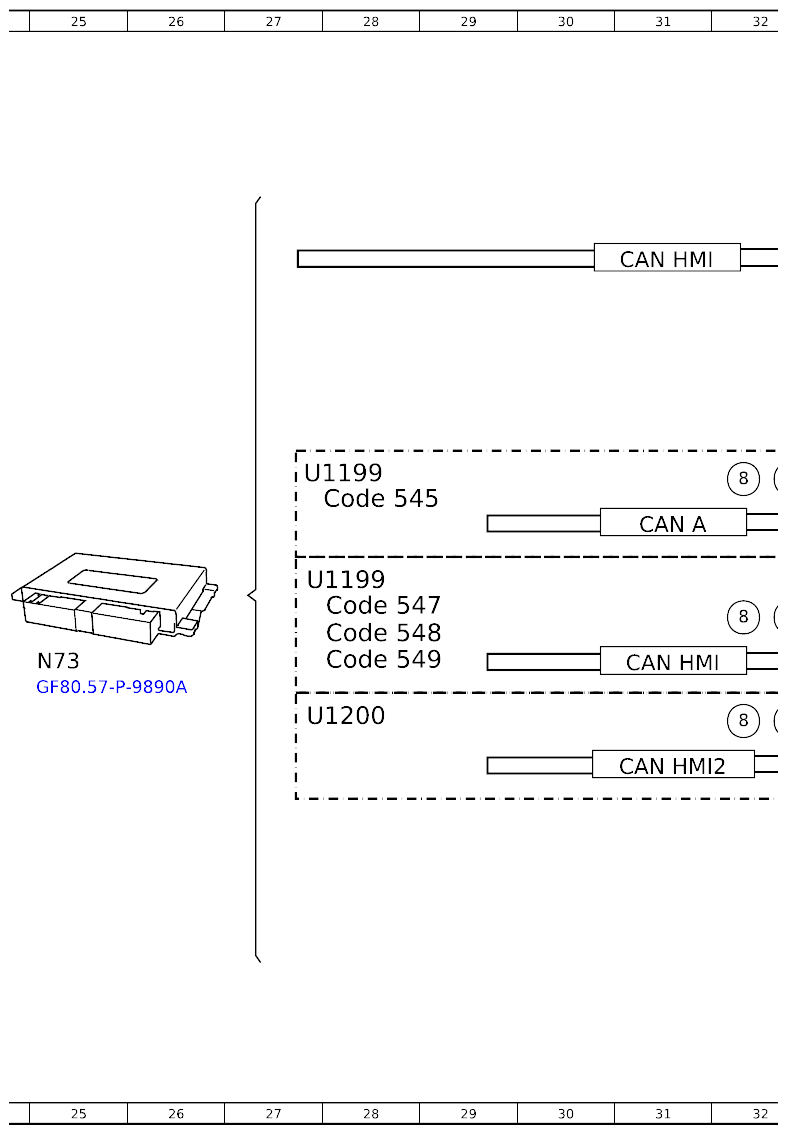

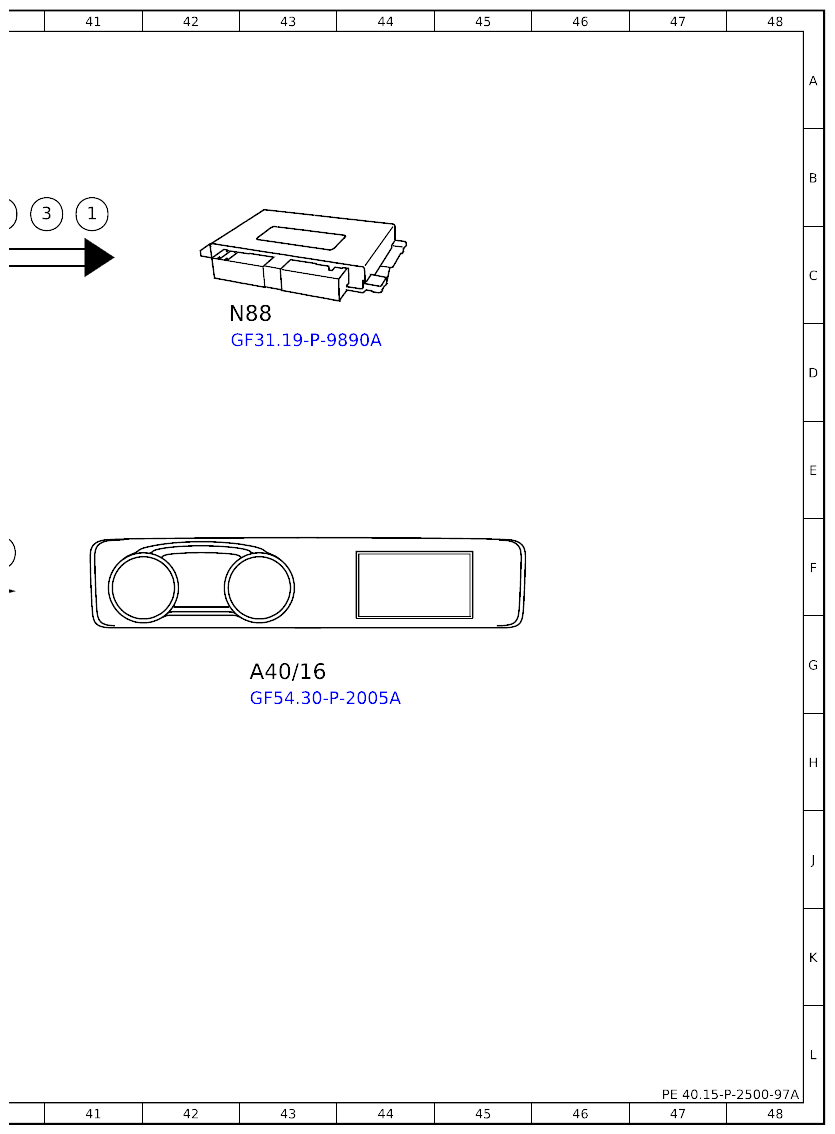

Function Schematic For Tire Pressure Monitor (TPM) - PE40.15-P-2500-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 167, 177, 243, 247, 293 with code 475 (Tire pressure monitor (TPM))
| Code: | Designation: | Position: |
|---|---|---|
| A40/16 | Head unit/instrument cluster display cluster | 43G |
| A40/16 | Head unit/instrument cluster display cluster | 3G |
| B14 | Outside temperature display temperature sensor | 7D |
| Code 545 | Connect 5 (NTG6) | 10E |
| Code 545 | Connect 5 (NTG6) | 28E |
| Code 545 | Connect 5 (NTG6) | 34F |
| Code 545 | Connect 5 (NTG6) | 16E |
| Code 547 | Connect 20 Entry (NTG6) | 10F |
| Code 547 | Connect 20 Entry (NTG6) | 28F |
| Code 547 | Connect 20 Entry (NTG6) | 34G |
| Code 547 | Connect 20 Entry (NTG6) | 16G |
| Code 548 | Connect 20 MID (NTG6) | 10F |
| Code 548 | Connect 20 MID (NTG6) | 28G |
| Code 548 | Connect 20 MID (NTG6) | 34G |
| Code 548 | Connect 20 MID (NTG6) | 16G |
| Code 549 | Connect 20 HIGH (NTG6) | 10F |
| Code 549 | Connect 20 HIGH (NTG6) | 28G |
| Code 549 | Connect 20 HIGH (NTG6) | 34G |
| Code 549 | Connect 20 HIGH (NTG6) | 16G |
| Code 801 | YoM 20/1 | 1H |
| Code 801 | YoM 20/1 | 1K |
| Code F167 | Model series 167 | 1H |
| Code F167 | Model series 167 | 1K |
| Code F167 | Model series 167 | 16D |
| Code F243 | MODEL SERIES 243 | 1L |
| Code F243 | MODEL SERIES 243 | 16C |
| Code F293 | Model series 293 | 1L |
| Code F293 | Model series 293 | 16D |
| HSVL | High-speed video link | 38F |
| HSVL | High-speed video link | 7E |
| N10 | Central control module | 16C |
| N10/6 | Front SAM control unit | 17D |
| N73 | EIS [EZS] control unit | 25G |
| N80 | Steering column module | 14K |
| N88 | TPM [RDK] control unit | 5B |
| N88 | TPM [RDK] control unit | 43C |
| N133/1 | Instrument cluster control unit | 11G |
| N133/1 | Instrument cluster control unit | 35H |
| N135 | Steering wheel electronics | 8J |
| N135 | Steering wheel electronics | 8L |
| N166 | Head unit/instrument cluster control unit | 11E |
| N166 | Head unit/instrument cluster control unit | 35F |
| S163/1 | Instrument cluster multifunction steering wheel button group | 4H |
| S163/1 | Instrument cluster multifunction steering wheel button group | 4L |
| S163/2 | Head unit multifunction steering wheel button group | 4J |
| S163/2 | Head unit multifunction steering wheel button group | 4L |
| U1123 | Valid for model 118, 177, 247 | 1H |
| U1123 | Valid for model 118, 177, 247 | 1K |
| U1123 | Valid for model 118, 177, 247 | 16C |
| U1199 | Valid for vehicles up to facelift | 27F |
| U1199 | Valid for vehicles up to facelift | 27E |
| U1199 | Valid for vehicles up to facelift | 16E |
| U1199 | Valid for vehicles up to facelift | 16F |
| U1200 | Valid for vehicles as of facelift | 27H |
| U1200 | Valid for vehicles as of facelift | 16H |
| CAN A | Telematics CAN | 31F |
| CAN A | Telematics CAN | 21F |
| CAN B | Interior CAN | 21D |
| CAN HMI | User interface CAN | 21B |
| CAN HMI | User interface CAN | 31C |
| CAN HMI | User interface CAN | 11B |
| CAN HMI | User interface CAN | 21G |
| CAN HMI | User interface CAN | 31G |
| CAN HMI | User interface CAN | 38C |
| CAN HMI2 | CAN 2 for user interface | 31H |
| CAN HMI2 | CAN 2 for user interface | 21H |
| CAN LR | CAN for steering wheel | 10K |
| Flex E | Chassis FlexRay | 21J |
| 1 | Circuit 15, status | 41B |
| 2 | Multifunction steering wheel button group, signal | 40F |
| 2 | Multifunction steering wheel button group, signal | 33E |
| 2 | Multifunction steering wheel button group, signal | 12H |
| 2 | Multifunction steering wheel button group, signal | 7H |
| 2 | Multifunction steering wheel button group, signal | 7K |
| 2 | Multifunction steering wheel button group, signal | 12K |
| 2 | Multifunction steering wheel button group, signal | 23J |
| 2 | Multifunction steering wheel button group, signal | 33G |
| 2 | Multifunction steering wheel button group, signal | 33H |
| 3 | Activate tire pressure monitor, request | 23E |
| 3 | Activate tire pressure monitor, request | 9E |
| 3 | Activate tire pressure monitor, request | 40B |
| 3 | Activate tire pressure monitor, request | 23G |
| 3 | Activate tire pressure monitor, request | 23H |
| 4 | Vehicle speed, signal | 22E |
| 4 | Vehicle speed, signal | 40B |
| 4 | Vehicle speed, signal | 9E |
| 4 | Vehicle speed, signal | 22G |
| 4 | Vehicle speed, signal | 22H |
| 5 | Outside temperature, signal | 40F |
| 5 | Outside temperature, signal | 32E |
| 5 | Outside temperature, signal | 23C |
| 5 | Outside temperature, signal | 13C |
| 5 | Outside temperature, signal | 40B |
| 5 | Outside temperature, signal | 22E |
| 5 | Outside temperature, signal | 8E |
| 5 | Outside temperature, signal | 22G |
| 5 | Outside temperature, signal | 32G |
| 5 | Outside temperature, signal | 32H |
| 5 | Outside temperature, signal | 22H |
| 8 | Tire pressure monitor, message | 23A |
| 8 | Tire pressure monitor, message | 39F |
| 8 | Tire pressure monitor, message | 32E |
| 8 | Tire pressure monitor, message | 32G |
| 8 | Tire pressure monitor, message | 32H |
| 10 | Kilometer reading and maintenance computer information, signal | 39B |
| 10 | Kilometer reading and maintenance computer information, signal | 21E |
| 10 | Kilometer reading and maintenance computer information, signal | 8E |
| 10 | Kilometer reading and maintenance computer information, signal | 21G |
| 10 | Kilometer reading and maintenance computer information, signal | 21H |
