Drain Tirefit Tire Sealant - AR40.10-P-1031-01MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
- Unscrew union nut from valve body and push valve body into wheel and tire assembly.
- Place complete wheel upright and slightly elevated with valve bore pointing downwards for 10 minutes.
To ease extraction of the tire sealant (3).
-
- 3.1
If an empty tire sealant container (1) is available.
Extract tire sealant (3).

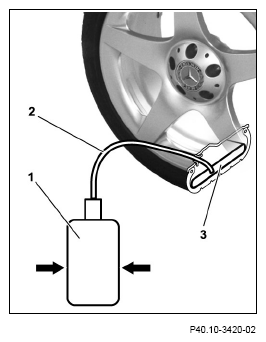

Use empty tire sealant container (1) with a hose (2) of approx. 400 mm in length. Position tire sealant container (1) under wheel and tire assembly.
Up to approx. 90% of the tire sealant (3) can be extracted.
- 3.2 If an empty tire sealant container (1) is not available.
Drill through tread of tire using a drill (0 10 mm) and collect tire sealant (3) in suitable container.
- 3.1
If an empty tire sealant container (1) is available.
