Secondary 12 V On-Board Electrical System - SN00.01-P-0007-00A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model all (CAR)
STAR2 and STAR3
Basic information
- In the secondary 12 V on-board electrical system, the engine-off cycles are not shown separately.
- Instead, the charge balance of the engine-off cycles are shown with the respective driving cycles.
- The charge balance shows the engine-off and driving cycles as in the other on-board electrical systems.
- The individual values while driving relate to the internal resistance of the battery as well as the charge level at the start and end of the cycle.

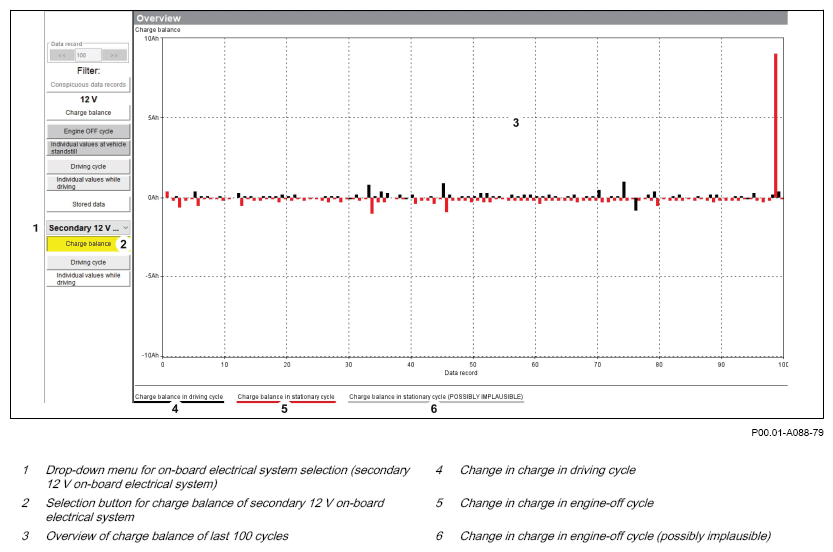

Secondary 12 V on-board electrical system: Charge balance
