Exterior Lighting - SN00.00-P-0080-09G
Model 118.3
Exterior lights
The exterior lighting is offered in three versions:
- Halogen headlamps
- Standard equipment
- Static LED headlamp
- Code 631 (Static LED headlamps for left-hand traffic system)
- Code 632 (Static LED headlamps for right-hand traffic system)
- Dynamic LED headlamp (MULTIBEAM LED)
- Code 640 (Dynamic LED headlamps, SAE, for right-hand traffic system)
- Code 641 (Dynamic LED headlamps for left-hand traffic system)
- Code 642 (Dynamic LED headlamps for right-hand traffic system)

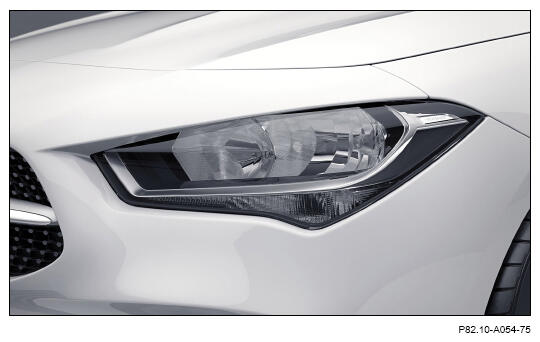

Shown on model 118.3 with halogen headlamp, left attachment side

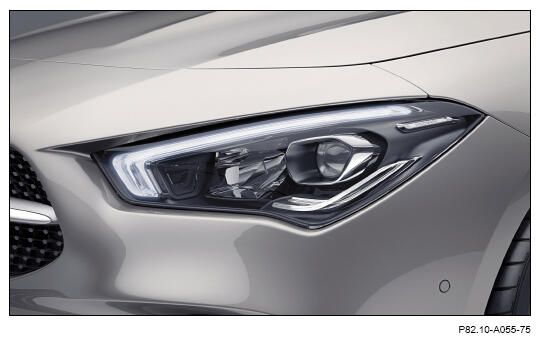

Shown on model 118.3 with static LED headlamp, left attachment side

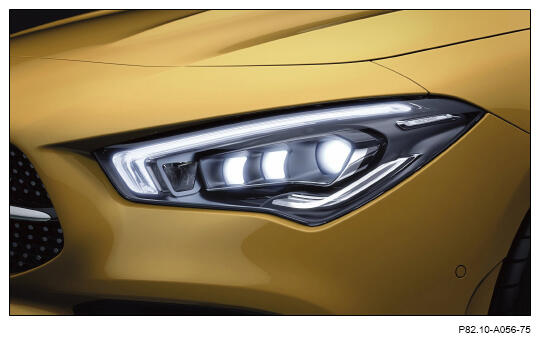

Shown on model 118.3 with dynamic LED headlamp (MULTIBEAM LED), left attachment side
Dynamic LED headlamp (MULTIBEAM LED)
The new CLA-Class has newly formed headlamps with the MULTIBEAM LED lighting system that facilitates anti-glare driving with continuous high beam. The MULTIBEAM LED lighting system facilitates optimal road illumination for different driving situations and weather conditions. The possible light functions are realized by increasing the light output and adapting the light distribution. The MULTIBEAM LED lighting system regulates the light cone horizontally via 18 LEDs per headlamp. By selectively actuating individual LEDs, different light distributions can be generated. All measures have the purpose of further improving the light output, light distribution and headlamp range and making driving at night even more safe.
The following additional functions are facilitated due to the control options of the lighting system:
- Active Highbeam Assist Plus
- City light
- Motorway light
- Cornering illumination
Rear lamps
The tail lamps of the new CLA-Class have a two-piece design. Depending on the headlamp version, two rear lamp variants are automatically added. Both variants differ in terms of their design and the used light sources.
The turn signal light and reversing light lighting functions are implemented in the rear lamps with bulbs for vehicles that have a halogen headlamp. The rear lamps of vehicles with LED headlamps also implement all lighting functions in the rear lamps with LEDs. The brake and turn signal light can be operated at different intensities depending on the driving condition and brightness of the environment (day/night) (multi-level functionality).

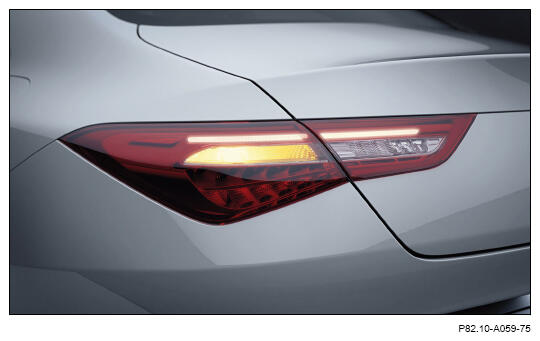

Shown on model 118.3 tail lamps with partial LED (rear turn signal light and reversing light in halogen technology), left attachment side

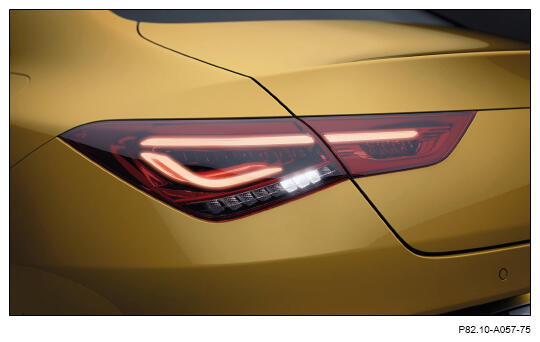

Shown on model 118.3 tail lamps with full LED, left attachment side
