Engine-Off Cycle - SN00.01-P-0008-06A

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model all (CAR)

STAR2 and STAR3

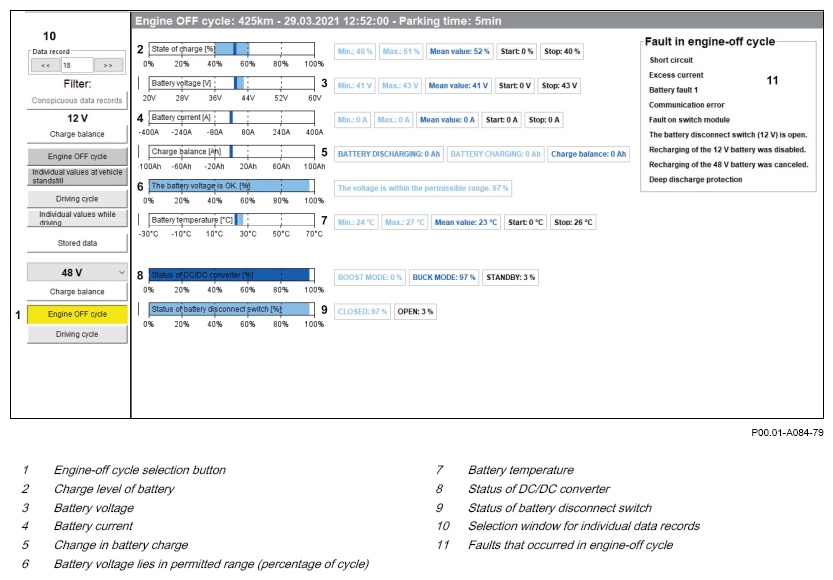

G16047300Courtesy of MERCEDES-BENZ USA

48 V on-board electrical system: Engine-off cycle (5 min)

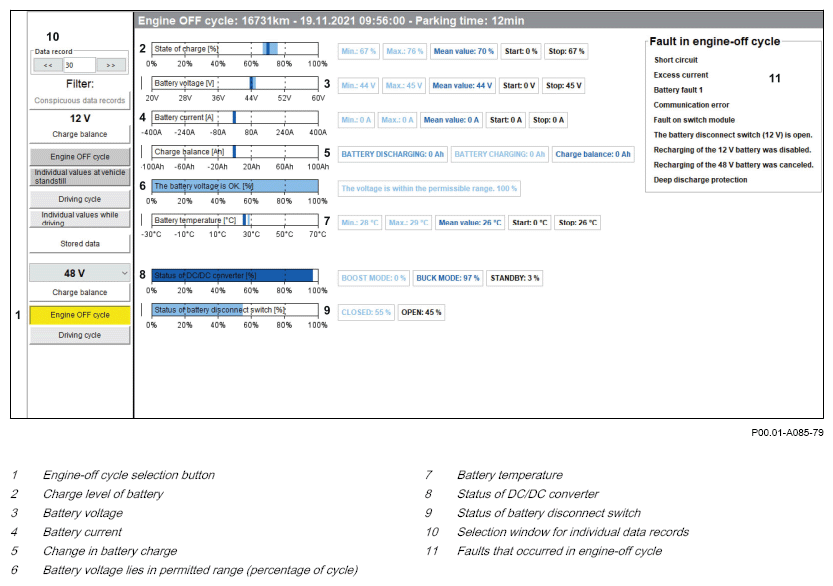

G16047301Courtesy of MERCEDES-BENZ USA

48 V on-board electrical system: Engine-off cycle (12 min)
