Driving Cycle Individual Values - SN00.01-P-0008-03B
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model all (CAR)
STAR2 and STAR3 secondary 12 V on-board electrical system

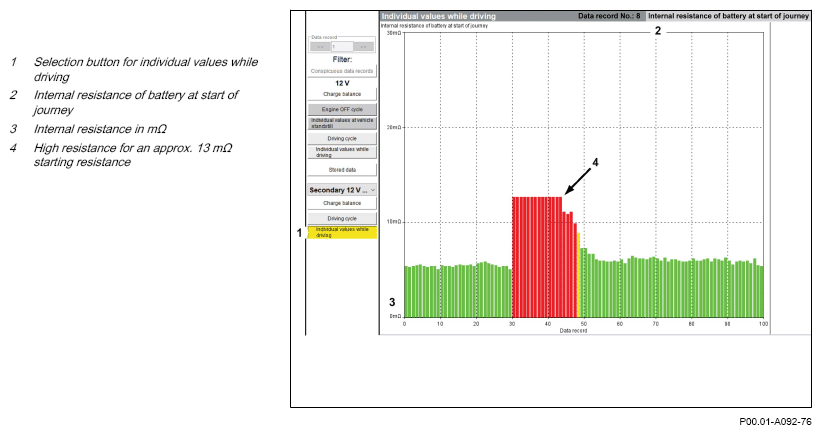

Secondary 12 V on-board electrical system: Individual values while driving - Internal resistance of battery

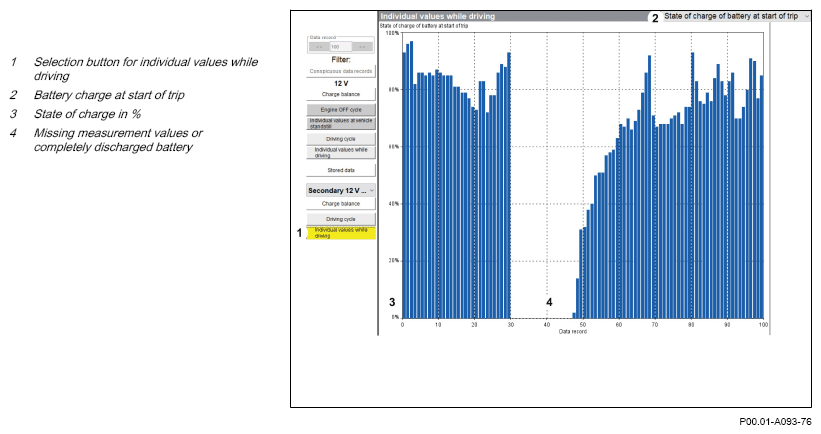

Secondary 12 V on-board electrical system: Individual values while driving - State of charge of battery at start of trip
Secondary 12 V on-board electrical system: Individual values while driving - Charge level of battery at end of journey
