Driving Cycle Individual Values - SN00.01-P-0008-03A

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model all (CAR)

STAR2 and STAR3

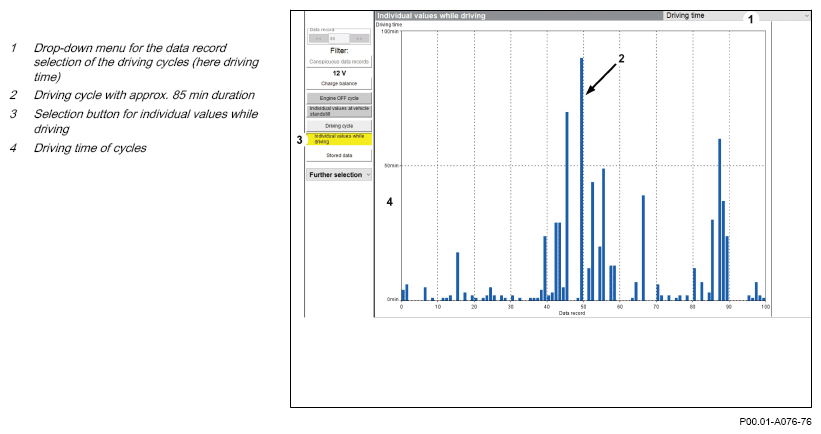

12 V on-board electrical system: Individual values while driving - Driving time

Courtesy of MERCEDES-BENZ USA

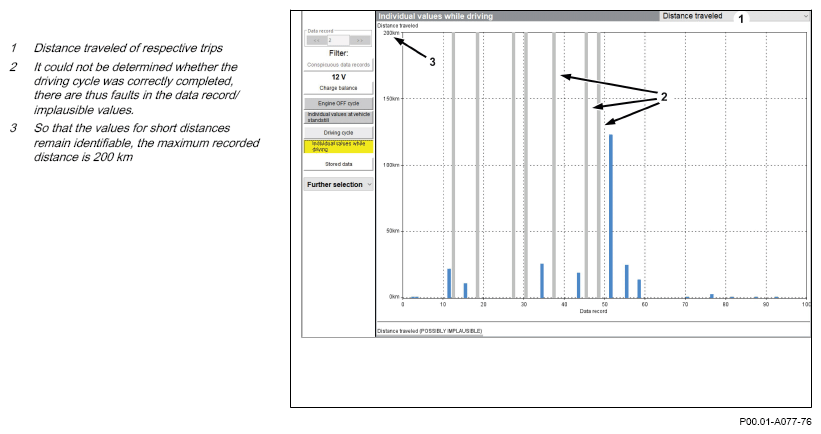

12 V on-board electrical system: Individual values while driving - Distance traveled

Courtesy of MERCEDES-BENZ USA

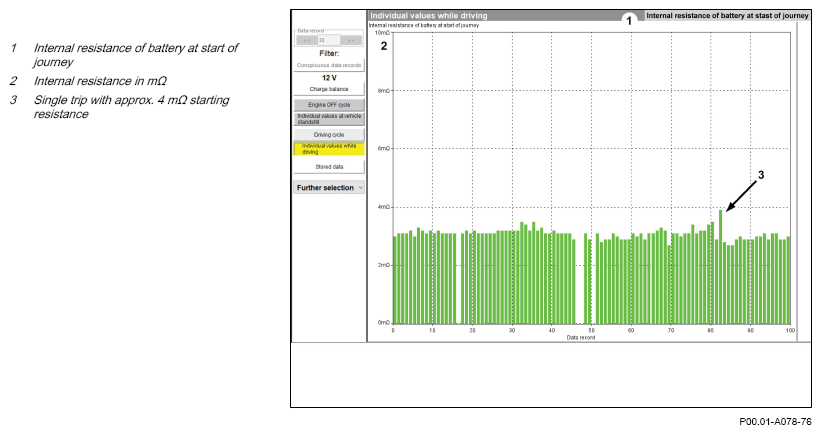

12 V on-board electrical system: Individual values while driving - Battery resistance

Courtesy of MERCEDES-BENZ USA

i Noticeable problem: The battery disconnect switch was open for the data records 17, 46/47 and 51. Dummy entries were generated here. ("Bars" correspond to a parking cycle)

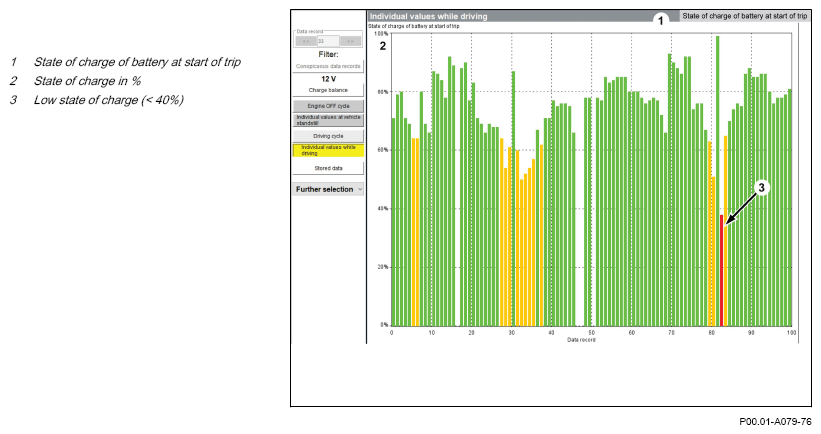

12 V on-board electrical system: Individual values while driving - State of charge of battery at start of trip

Courtesy of MERCEDES-BENZ USA

i Good state of charge: > 65%

Partially charged state of charge: 45-65%

Poor state of charge: < 45%

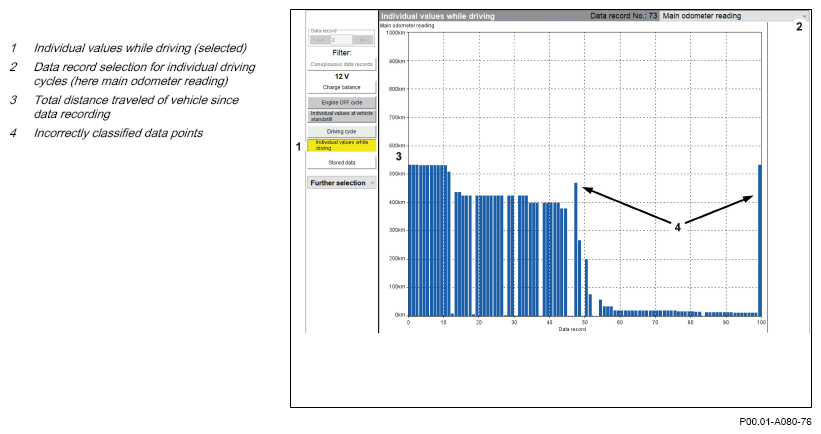

12 V on-board electrical system: Individual values while driving - Main odometer reading

Courtesy of MERCEDES-BENZ USA

i The values displayed here show some missing data records.

In addition, 2 data records have been incorrectly classified (no. 100 and 47).
